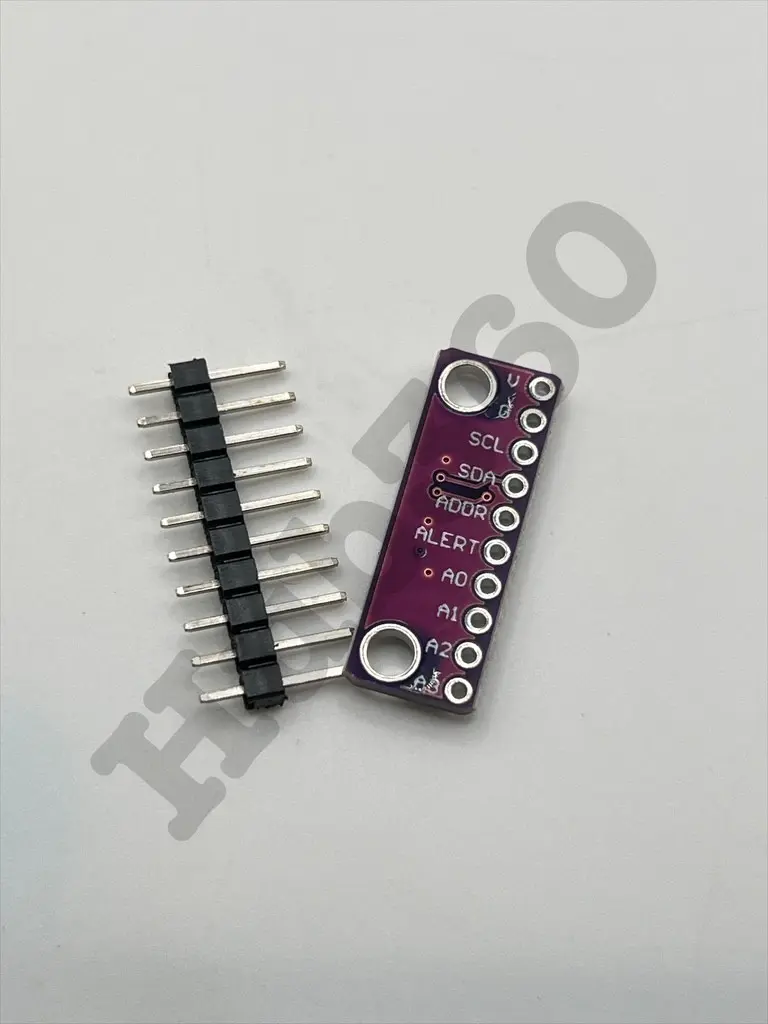

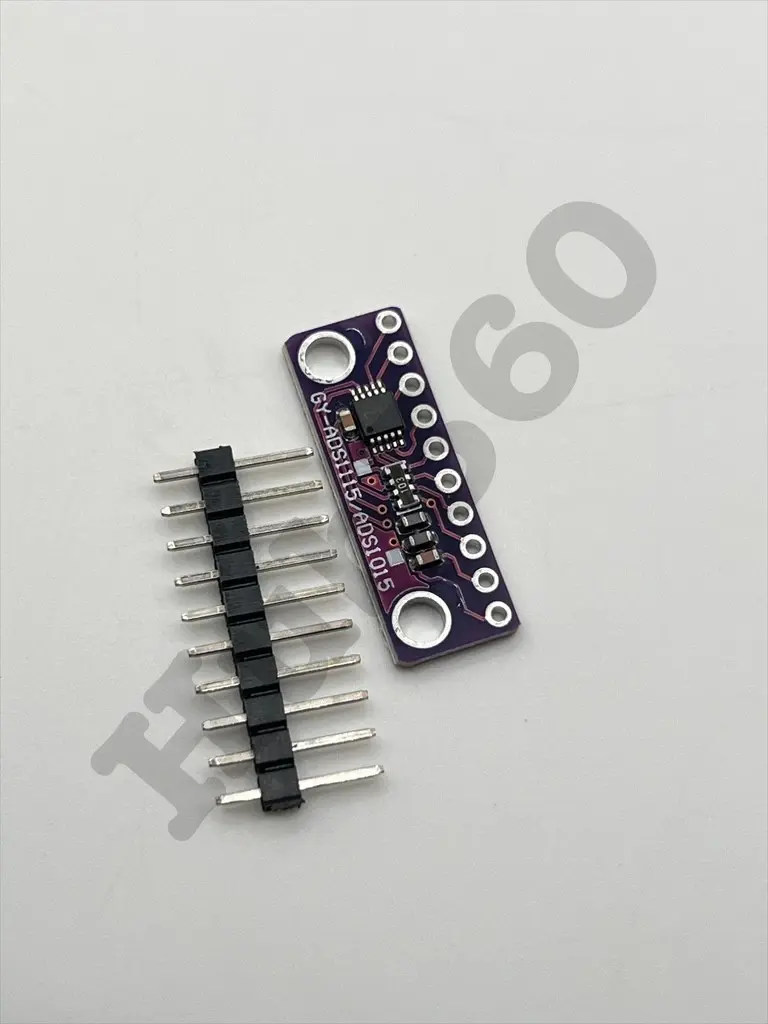

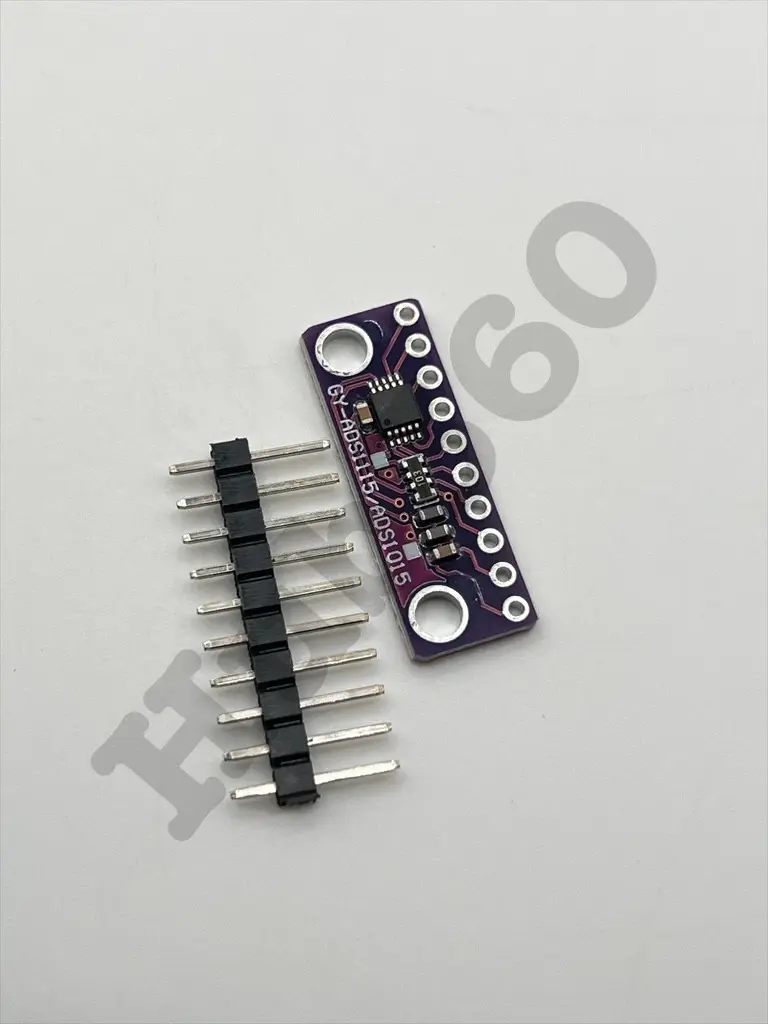

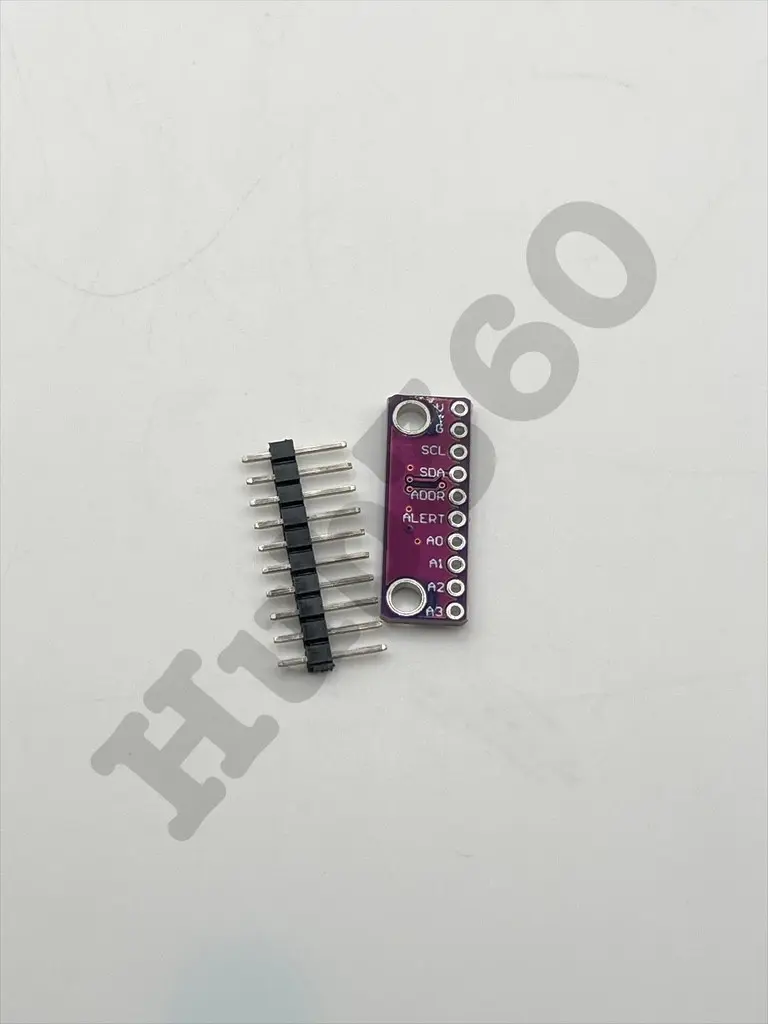

GY-ADS1015 12 bit ADC module
Description:
The GY-ADS1015 12-bit ADC Module is a compact and versatile analog-to-digital converter module based on the ADS1015 IC. It is designed to provide accurate and reliable analog voltage measurements for a variety of applications, including sensor interfacing, data acquisition systems, and voltage monitoring circuits. This module integrates essential features for easy integration and precise analog signal conversion.
Key Features:
- 12-bit analog-to-digital conversion resolution
- Four input channels (single-ended or differential inputs)
- Programmable data rate up to 3300 samples per second (SPS)
- Internal programmable gain amplifier (PGA) up to 16x
- Wide operating voltage range: 2.0V to 5.5V
- I2C interface for communication with microcontrollers
- Onboard voltage reference
- Compact size for easy integration into various projects
- ADC Resolution: 12-bit
- Input Channels: 4 (single-ended or differential)
- Programmable Gain: Up to 16x
- Data Rate: Up to 3300 samples per second (SPS)
- Operating Voltage: 2.0V to 5.5V
- Interface: I2C (Address selection via ADDR pin)
- Integrated Voltage Reference: Yes
- Dimensions: Compact module size for easy integration
- Weight: Lightweight for portability
- Sensor interfacing and data acquisition
- Battery voltage monitoring
- Portable instrumentation
- Industrial automation
- IoT (Internet of Things) devices
- Educational projects in electronics and microcontroller interfacing
