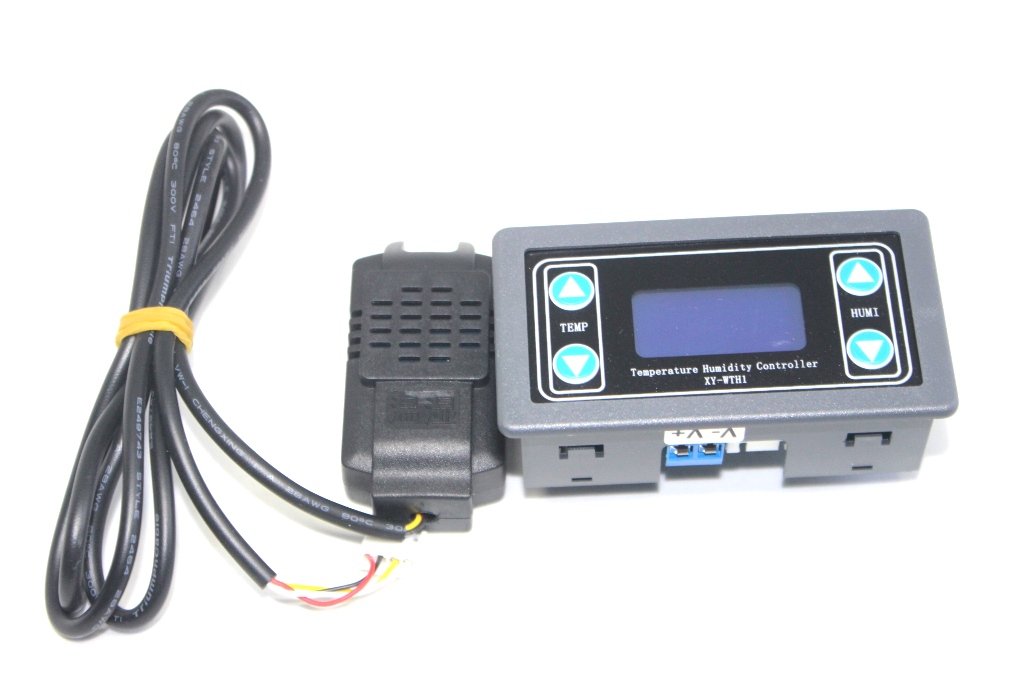

XY-WTH1 temperature and humidity display and control module

Description:

The XY-WTH1 is a compact module that integrates temperature and humidity sensing with digital display and control functionalities. It allows users to monitor and regulate environmental conditions within a specific range.

Key Features:

• Dual-channel measurement: Measures both temperature and humidity.
• Digital display: Provides real-time readings of temperature and humidity on an LCD screen.
• Setpoint control: Enables users to define desired temperature and humidity thresholds.
• Relay control: Integrates a relay that automatically activates/deactivates connected equipment (e.g., heaters, coolers, humidifiers) to maintain setpoint conditions.
• User-programmable settings: Allows customization of setpoints and operating modes.
• Wide operating voltage range (typically 6V to 30V DC).
• Compact size for easy integration into various projects.

Technical Specifications (Refer to Datasheet):

• Operating Voltage: Typically 6V to 30V DC (exact range varies)
• Measurement Range:
  • Temperature: Refer to datasheet (usually -50°C to +110°C)
  • Humidity: Refer to datasheet (usually 0% to 100% RH)
• Sensor Type: Typically SHT20 (consult datasheet for specific model)
• Control Accuracy: Refer to datasheet (typically ±0.1°C for temperature, ±3% RH for humidity)
• Relay Output: Rated according to model (check datasheet for voltage and current ratings)
• Display: LCD screen
• Dimensions: Refer to datasheet for specific model dimensions

Applications:

• Environmental monitoring and control in greenhouses, terrariums, incubators, and other applications requiring precise temperature and humidity regulation.
• Building automation systems for maintaining comfortable indoor conditions.
• DIY projects for climate control, data logging, and educational purposes.
