Description

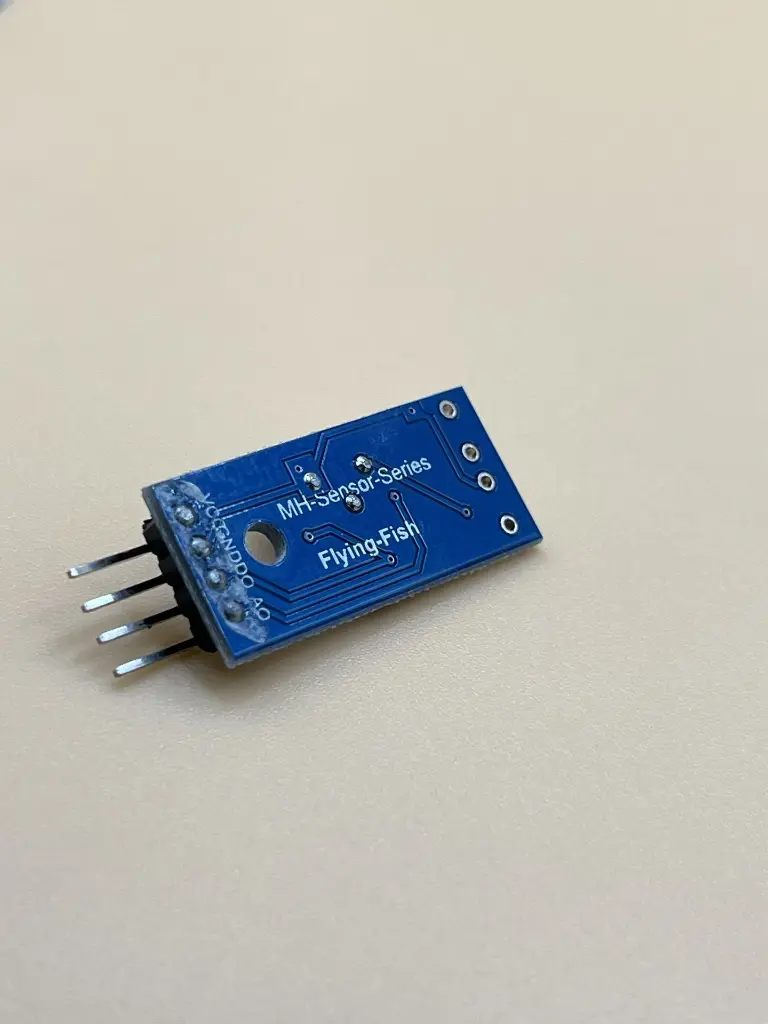

The FSR4 Resistive Film Pressure (RFP) Voltage Conversion Module is designed to convert the resistive signal from a force-sensitive resistor (FSR) into a corresponding voltage output. This module is ideal for applications that require precise pressure sensing and measurement, such as robotics, medical devices, and interactive touch controls. The module provides a simple and effective interface for integrating FSR sensors with microcontrollers and other analog input devices.
Key Features:
- Converts resistive signal from FSR to voltage output
- High sensitivity to pressure changes
- Wide operating pressure range
- Simple interface for easy integration
- Low power consumption
- Compact and lightweight design
- Adjustable sensitivity for different applications
Technical Specifications:
- Input Type: Resistive film pressure (FSR) sensor
- Output Type: Voltage
- Operating Voltage: 3.3V to 5V
- Output Voltage Range: 0V to Vcc
- Sensitivity: Adjustable via onboard potentiometer
- Operating Temperature: -20°C to +60°C
- Dimensions: Compact size suitable for integration into various projects
- Weight: Lightweight for minimal impact on overall system weight
Applications:
- Robotics for pressure-sensitive applications
- Medical devices for patient monitoring
- Interactive touch controls in consumer electronics
- Industrial equipment for pressure measurement
- DIY projects and prototyping requiring pressure sensing
