Description

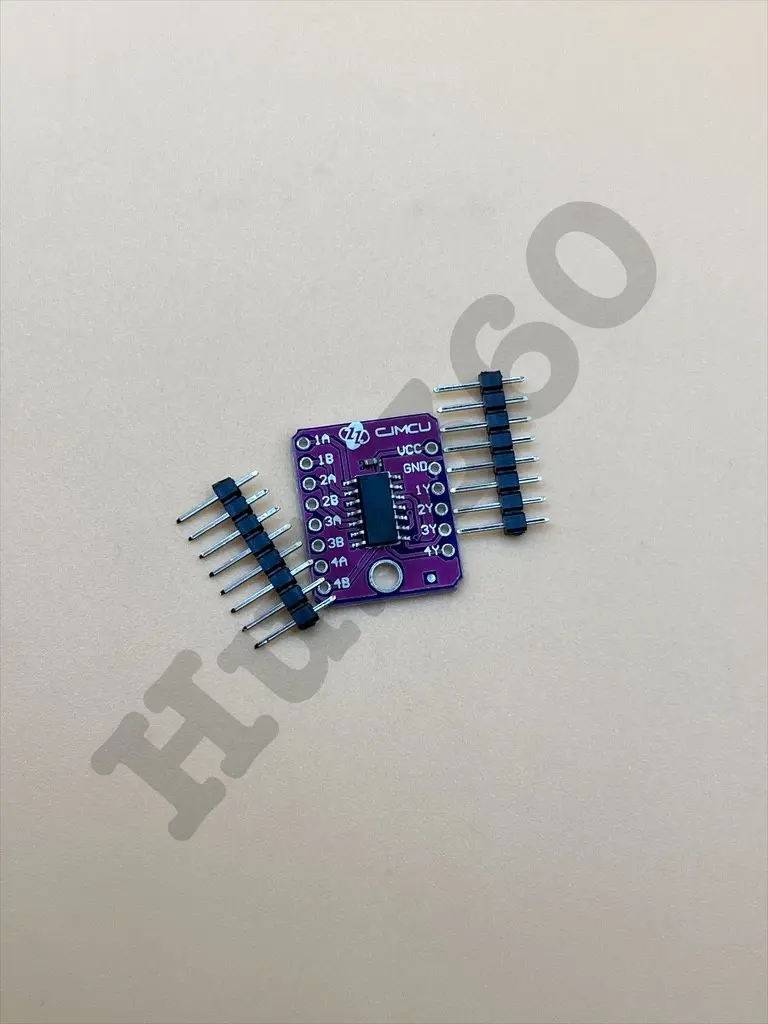

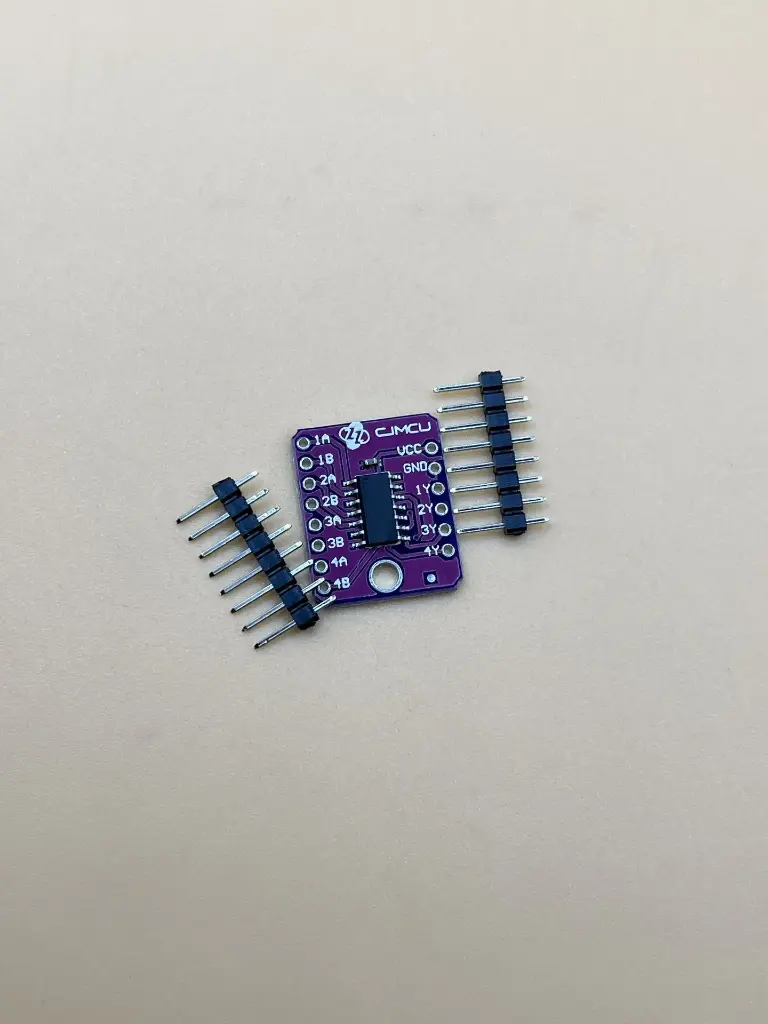

The MCU-7400 74HC00D is a high-speed CMOS Quad 2-input NAND gate module. It contains four independent NAND gates in a single package, designed for low power consumption and high noise immunity. The 74HC00D is widely used in digital circuits, including logic gate operations, digital signal processing, and various timing applications.
Key Features:
- Quad 2-input NAND gates
- High-speed CMOS technology
- Low power consumption
- High noise immunity
- Wide operating voltage range: 2V to 6V
- Standard pin configuration
- TTL-compatible inputs
Technical Specifications:
- Package Type: SOIC-14
- Supply Voltage (Vcc): 2V to 6V
- Input Voltage (Vi): 0V to Vcc
- Output Voltage (Vo): 0V to Vcc
- Output Current (Io): ±25mA per pin
- Propagation Delay: 8 ns (typical) at Vcc = 5V
- Operating Temperature: -40°C to +85°C
- Dimensions: 8.75 mm x 3.91 mm x 1.75 mm
- Weight: 0.15 g
Applications:
- Logic Gate Operations: Used for basic NAND logic gate operations in digital circuits.
- Digital Signal Processing: Suitable for various digital signal processing tasks.
- Timing Applications: Ideal for timing circuits and applications requiring precise logic operations.
- Computing Systems: Used in computing systems for logic processing.
- Control Systems: Suitable for control systems requiring reliable logic gate functionality.
Datasheet:
For detailed technical information, refer to the 74HC00D Datasheet.
