Description

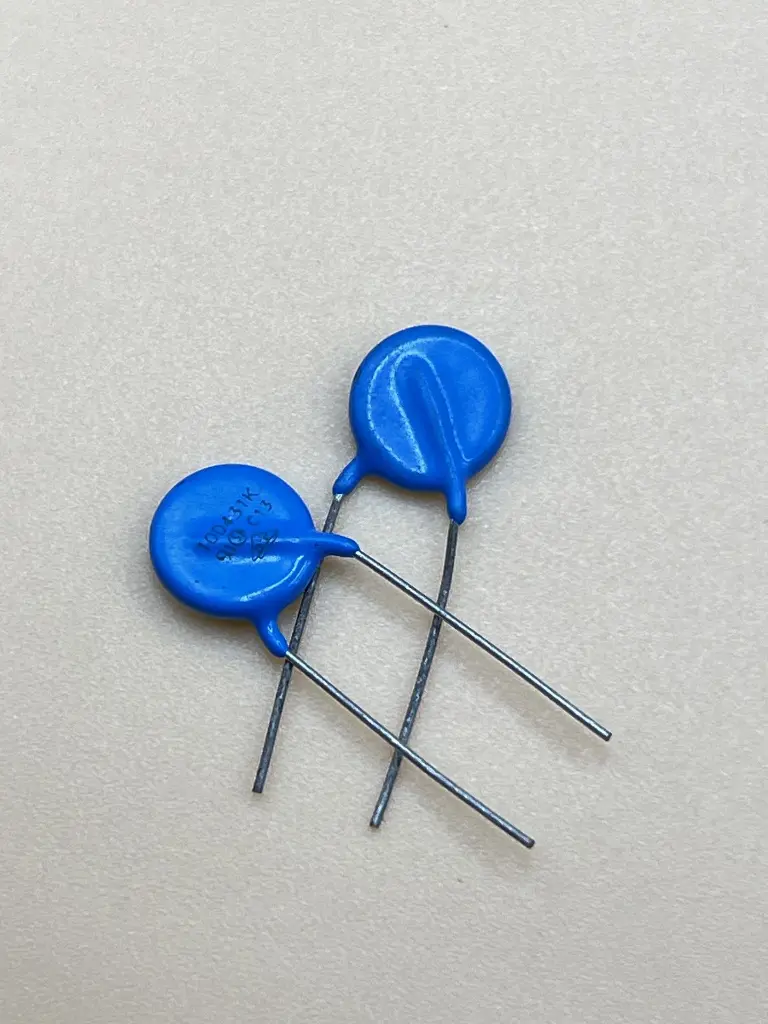

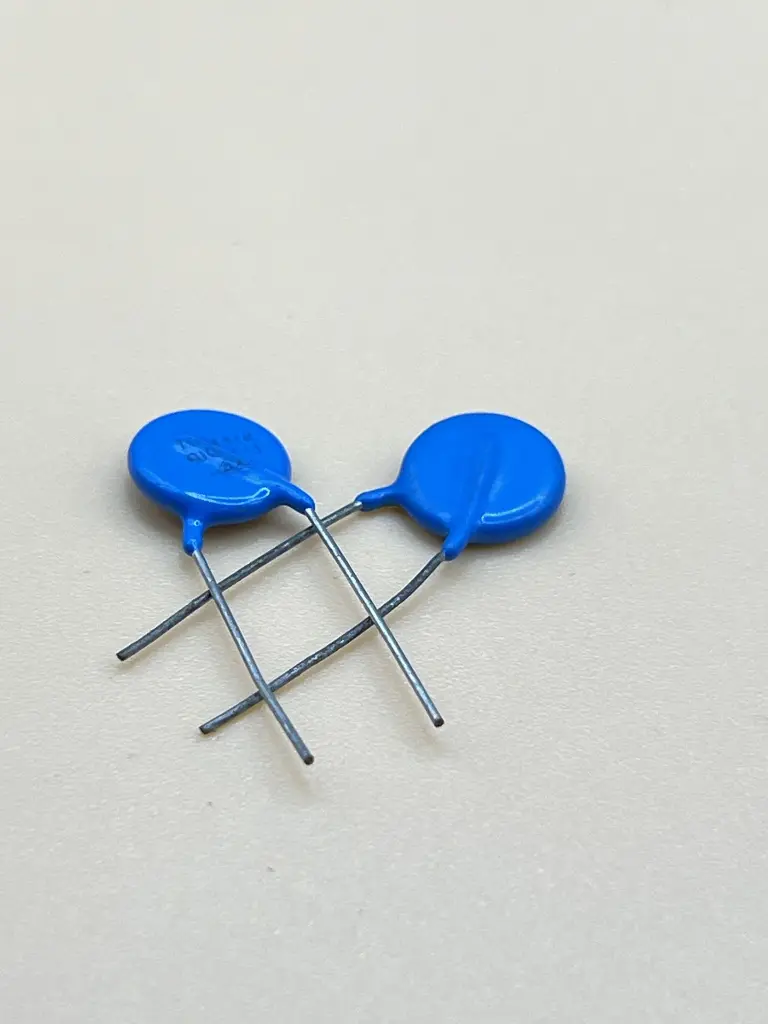

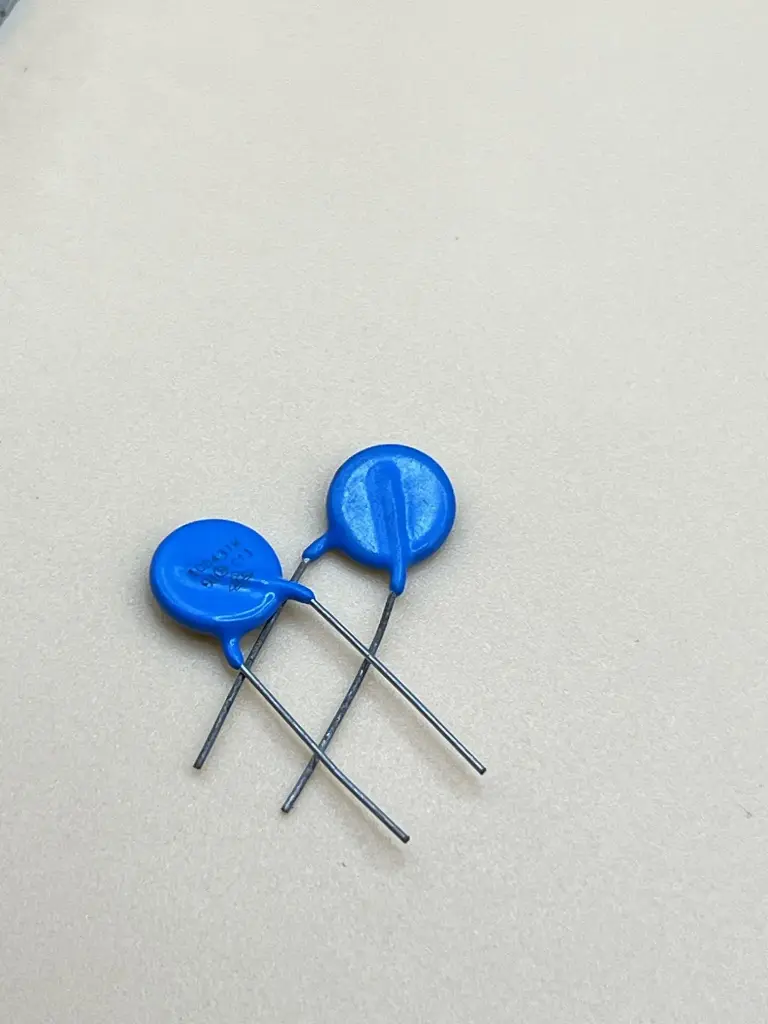

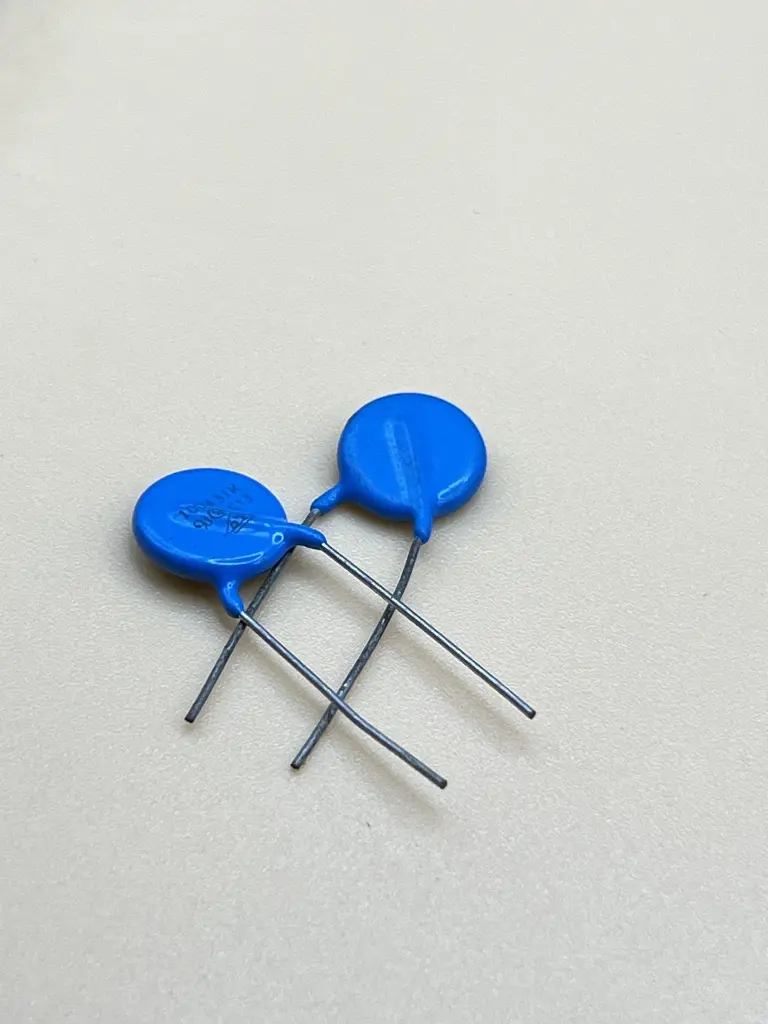

The 10D431K varistor is a type of voltage-dependent resistor designed to protect electronic circuits from transient voltage spikes and surges. It is commonly used as a component in surge protection devices and circuits to suppress high-energy transient events that could otherwise damage sensitive electronic components. The 10D431K varistor is characterized by its ability to rapidly change resistance in response to varying voltage levels, thereby diverting excess current away from the protected circuit and limiting voltage spikes to safe levels
Key Features:
- Voltage-dependent resistor (varistor) type
- Provides transient voltage suppression
- Protects against voltage surges and spikes
- Fast response time to transient events
- High energy absorption capacity
- Stable over a wide temperature range
Technical Specifications:
- Model: 10D431K
- Maximum Allowable Voltage (AC RMS): 275 V
- Maximum Allowable Voltage (DC): 350 V
- Varistor Voltage (at 1 mA DC): 430 V ± 10%
- Maximum Clamping Voltage (at 1 mA DC): 710 V
- Maximum Peak Current (8/20 µs): 6500 A
- Energy (10/1000 µs): 2 J
- Operating Temperature Range: -40°C to +85°C
- Lead Diameter: 1.0 mm (typical)
- Dimensions: 10 mm diameter disc
Applications:
- Surge Protection Devices: Used in power strips, surge suppressors, and surge arrestors.
- Power Supplies: Protects power supply circuits from voltage transients.
- Communication Equipment: Guards against voltage spikes in telecom and networking equipment.
- Consumer Electronics: Ensures protection of sensitive electronics like TVs, computers, and home appliances.
- Industrial Equipment: Safeguards control systems and automation equipment from electrical disturbances
