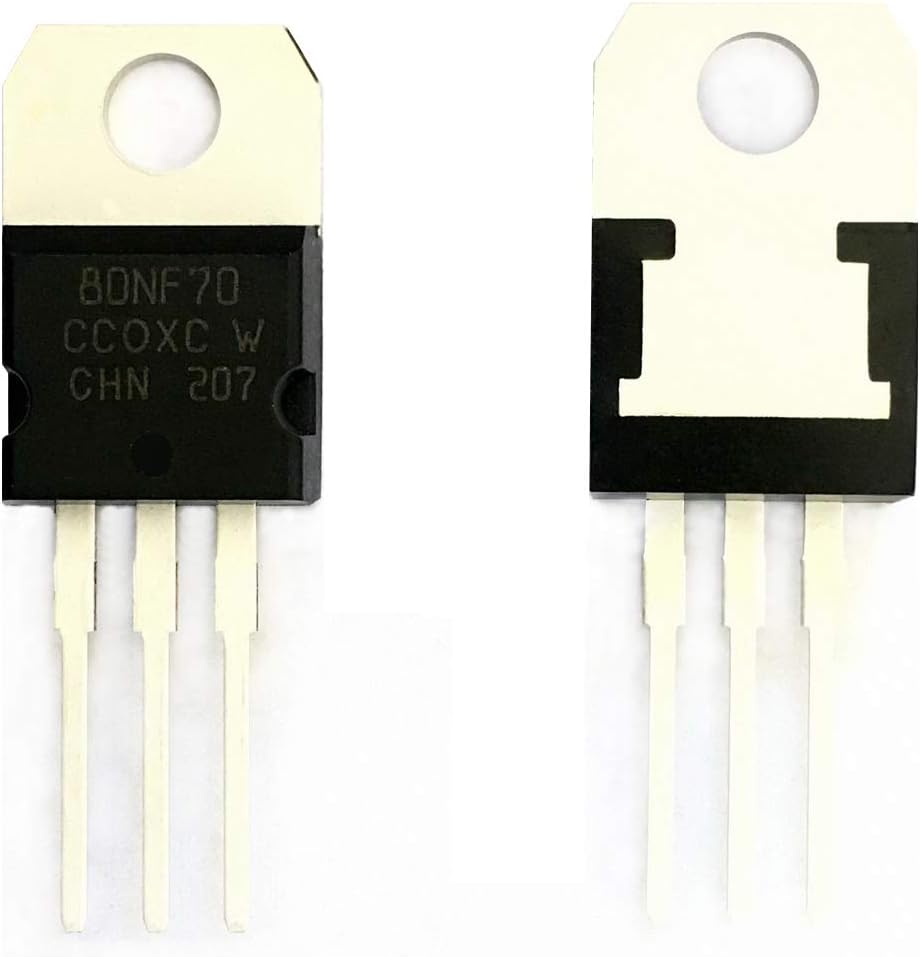

STP80NF70

https://maxmall.ng/web/image/product.template/14744/image_1920?unique=1c4a6b4
(0 review)

₦ 1,600.00 1600.0 NGN ₦ 1,600.00

₦ 1,600.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.


Contact Us
The STP80NF70 is an N-channel power MOSFET designed for high-speed switching applications. It offers low on-state resistance (RDS(on)) and low gate charge, making it suitable for use in power supplies, motor control, and other high-current switching circuits. Key Features:
  • Low On-Resistance (RDS(on)): 0.0092 ohms (max) at VGS = 10V, ID = 40A
  • Low Gate Charge (Qg): 106 nC (typical)
  • Avalanche Energy Rating: 360 mJ
  • Low Input Capacitance (Ciss)
  • Fast Switching Speed
Technical Specifications:
  • Drain-Source Voltage (VDS): 68V
  • Continuous Drain Current (ID): 80A
  • Pulsed Drain Current (IDM): 320A
  • Gate-Source Voltage (VGS(th)): 2V (max)
  • Total Power Dissipation (PD): 300W
  • Operating Temperature Range: -55°C to 175°C
Applications:
  • Switching Power Supplies
  • Motor Control
  • DC-DC Converters
  • Class D Amplifiers
Datasheet: For detailed technical specifications, refer to the STP80NF70 Datasheet.
