Description

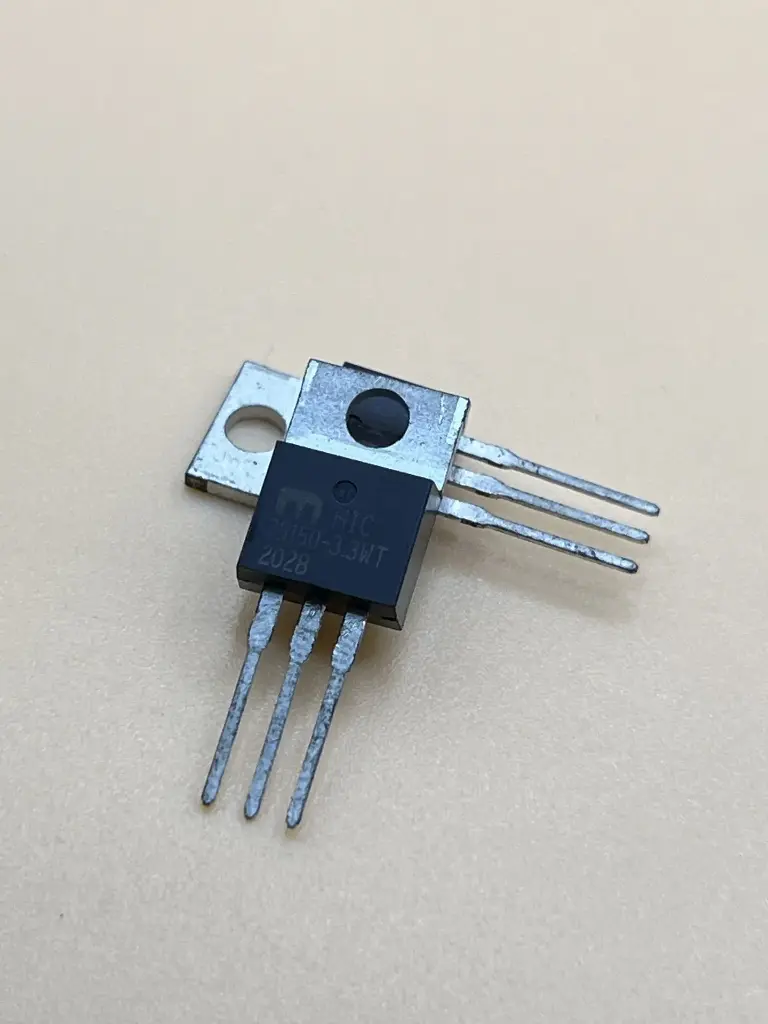

The MIC29150-3.3 is a low dropout voltage regulator designed to provide a stable 3.3V output voltage from a higher input voltage source. It is capable of delivering up to 1.5A of output current with minimal dropout voltage, making it suitable for applications requiring a reliable and efficient voltage regulation solution
Key Features:
- Output Voltage: 3.3V
- Dropout Voltage: Typically 0.6V at 1.5A
- Maximum Output Current: 1.5A
- Low quiescent current: 120µA (typical)
- High PSRR (Power Supply Rejection Ratio): 80dB at 1kHz
- Current Limiting and Thermal Shutdown Protection
- Adjustable and fixed output voltage versions available
Technical Specifications:

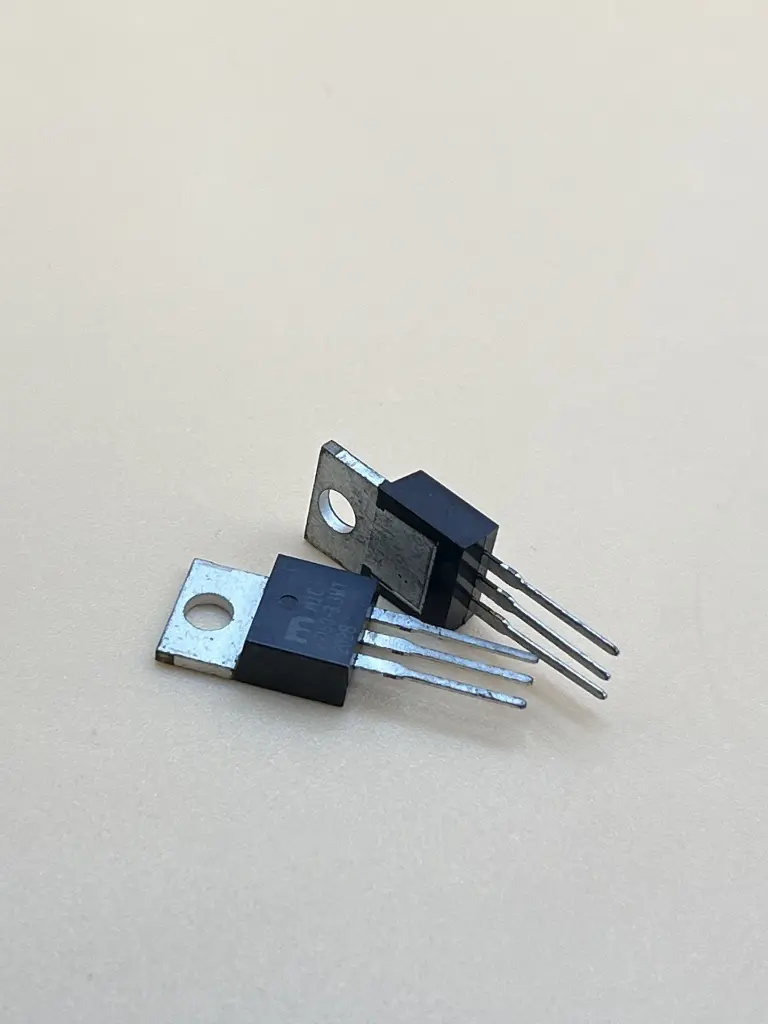

- Package Type: TO-220 (3-lead)
- Input Voltage Range: Up to 26V
- Output Voltage Accuracy: ±2%
- Line Regulation: 0.04% per volt
- Load Regulation: 0.1% per ampere
- Operating Temperature Range: 0°C to +125°C
- Dimensions: 10.4 mm x 29.3 mm x 4.6 mm
- Weight: 2 g
- Embedded Systems: Provides stable voltage supply for microcontrollers and digital ICs.
- Power Management: Suitable for voltage regulation in various power supply designs.
- Battery-Powered Devices: Used in portable electronics requiring efficient voltage regulation.
- Communication Equipment: Ideal for use in networking and telecommunications equipment.
- Industrial Control Systems: Provides regulated voltage for control and monitoring systems.
