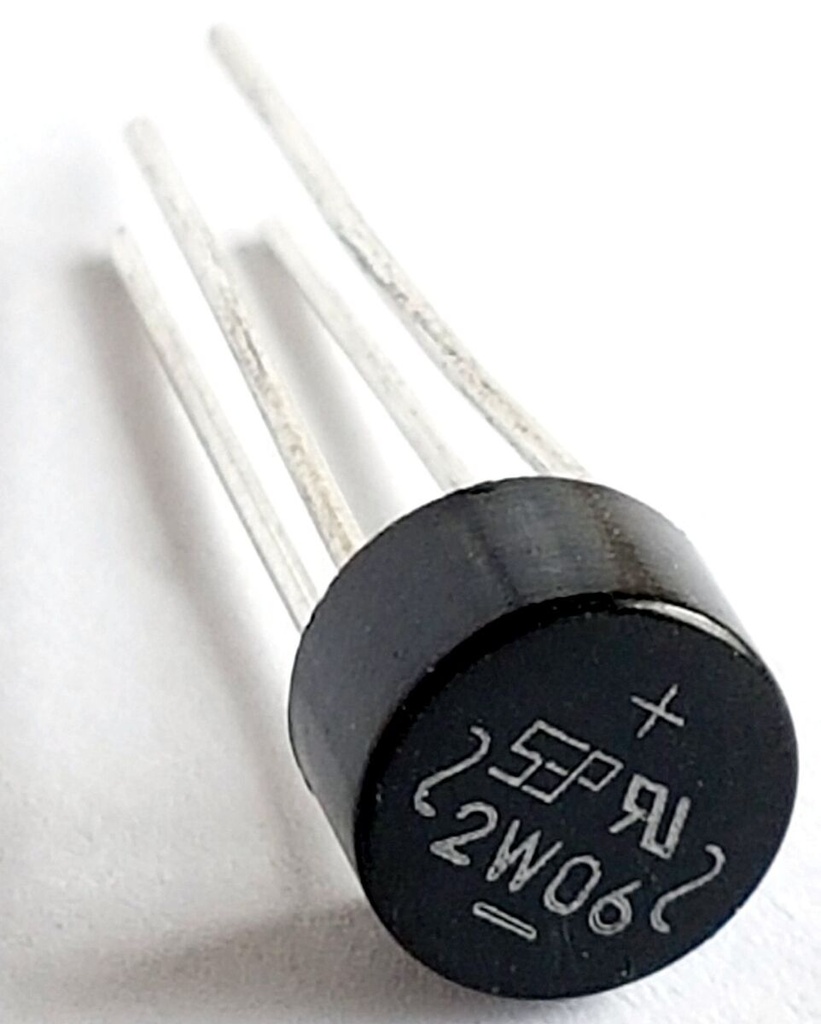

2W06 2A 600V bridge rectifier
Description: The 2W06 is a bridge rectifier designed for converting AC voltage to DC voltage in various electronic circuits and applications. It is suitable for use in power supplies, battery chargers, LED drivers, and other devices where efficient rectification and compact size are important. The bridge rectifier is designed to handle moderate currents and voltages reliably.
Key Features:
- Bridge rectifier configuration
- Converts AC voltage to DC voltage
- Compact size
- High surge capability
- RoHS compliant
- Peak Repetitive Reverse Voltage (V_RRM): 600V
- Average Rectified Output Current (I_O): 2A
- Surge Overload Rating: 50A (peak forward surge current, 8.3ms single half sine-wave)
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 2A, T_A = 25°C)
- Operating Temperature Range: -55°C to +150°C
- Package Type: Through Hole, DIP-4
- Power supplies
- Battery chargers
- LED lighting
- Consumer electronics
- Industrial control systems
