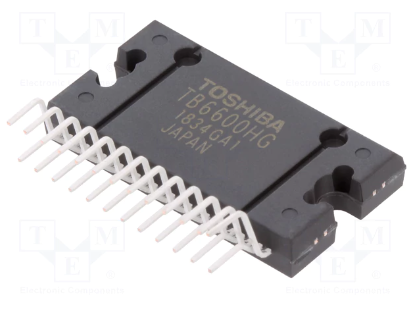

TB6600HG Motor driver chip
Description: The TB6600HG is a stepper motor driver IC designed to drive bipolar stepper motors in various applications requiring precise control and high torque. It incorporates pulse-width modulation (PWM) current control to achieve efficient operation and can drive motors with voltages up to 50V and currents up to 5A per phase. The TB6600HG is housed in a compact and thermally efficient HZIP25 package, making it suitable for use in CNC machines, 3D printers, robotics, and other automated systems.
Key Features:
- Bipolar stepper motor driver IC
- Operating voltage: 10V to 50V
- Output current: Up to 5A per phase
- Pulse-width modulation (PWM) current control
- Overheat protection and overcurrent detection
- HZIP25 package for effective heat dissipation
- Supply voltage: 10V to 50V
- Output current: Up to 5A per phase
- Logic input voltage: 3.3V to 5V
- Control signal: Pulse and direction input
- Protection features: Overcurrent, thermal shutdown
- Operating temperature range: -40°C to +85°C
- CNC machines
- 3D printers
- Robotics
- Automated equipment
- Industrial automation
