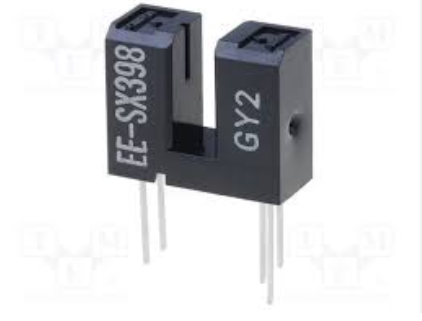

The EE-SX398 is a transmissive photomicrosensor that integrates an IC chip with a built-in detector element and amplifier. It is designed for high precision and reliable performance in various applications.
Key Features:
Built-in temperature compensation circuit.
Wide supply voltage range: 4.5 to 16 VDC.
Direct connection to C-MOS and TTL.
High resolution with a 0.5-mm-wide sensing aperture and a 3 mm wide slot.
Technical Specifications:
Emitter Forward Current: 50 mA max.
Emitter Reverse Voltage: 4 V max.
Detector Power Supply Voltage: 16 V max.
Output Voltage: 28 V max.
Operating Temperature Range: -40°C to 75°C
Response Frequency: 3 kHz min.
Applications:
Automation systems
Manufacturing processes
Equipment requiring precise detection
Usage:
Suitable for high-precision applications needing a small and accurate sensing aperture.
Caution:
Complete soldering within 10 seconds to prevent overheating.
Datasheet: For more detailed information, refer to the datasheet here.
