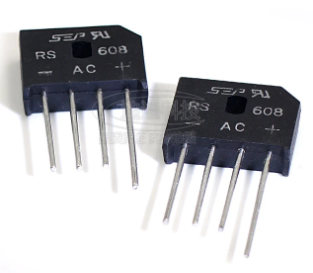

RS608 6A 800V bridge rectifier

https://maxmall.ng/web/image/product.template/14991/image_1920?unique=1c4a6b4
(0 review)

₦ 600.00 600.0 NGN ₦ 600.00

₦ 600.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.


Contact Us
Description: The RS608 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various electronic circuits and power supply applications. It integrates four diodes in a bridge configuration within a compact and robust package, offering efficient rectification with moderate current and high voltage handling capabilities. Key Features:
  • Single-phase bridge rectifier
  • Maximum Average Rectified Output Current (I_O): 6A
  • Maximum Repetitive Peak Reverse Voltage (V_RRM): 800V
  • Low forward voltage drop
  • High surge current capability
  • Compact and durable construction
Technical Specifications:
  • Maximum Average Rectified Output Current (I_O): 6A
  • Peak Repetitive Reverse Voltage (V_RRM): 800V
  • Maximum RMS Bridge Input Voltage (V_RMS): 560V
  • Maximum DC Blocking Voltage (V_DC): 800V
  • Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 6A, T_A = 25°C)
  • Surge Overload Rating (I_Surge): 200A
  • Operating Temperature Range: -55°C to +150°C
  • Package Type: RS (4-SIP)
Applications:
  • Power supplies
  • Battery chargers
  • Motor controls
  • Industrial automation
  • Consumer electronics
Datasheet: For detailed technical information, refer to the RS608 bridge rectifier datasheet.
