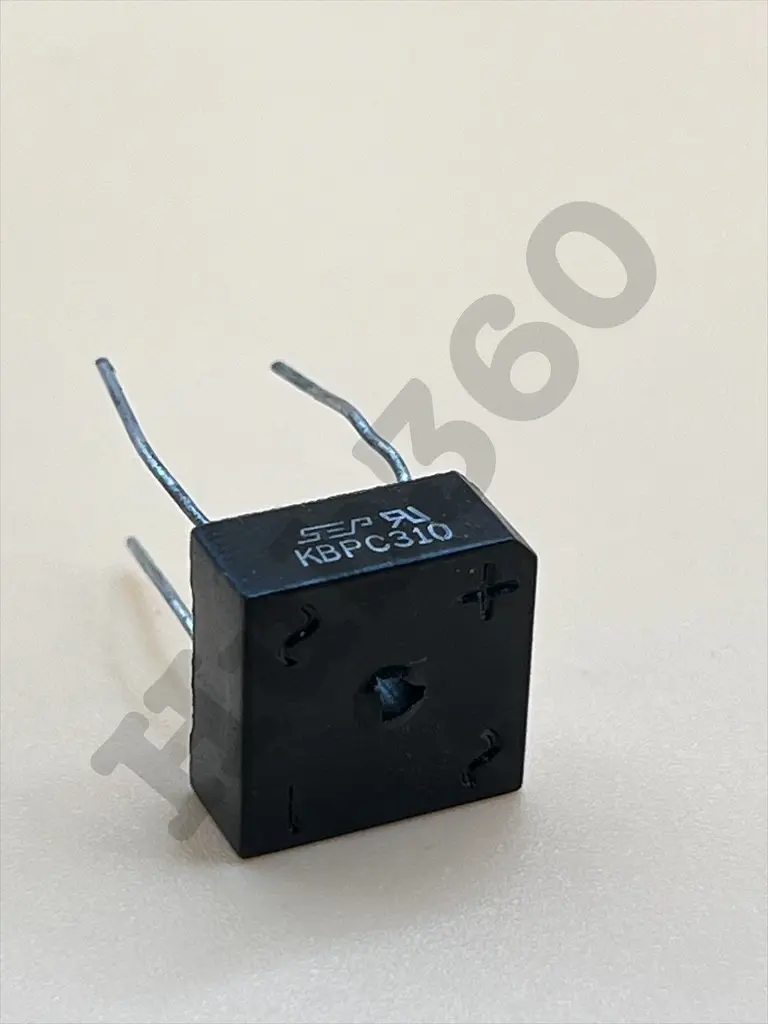

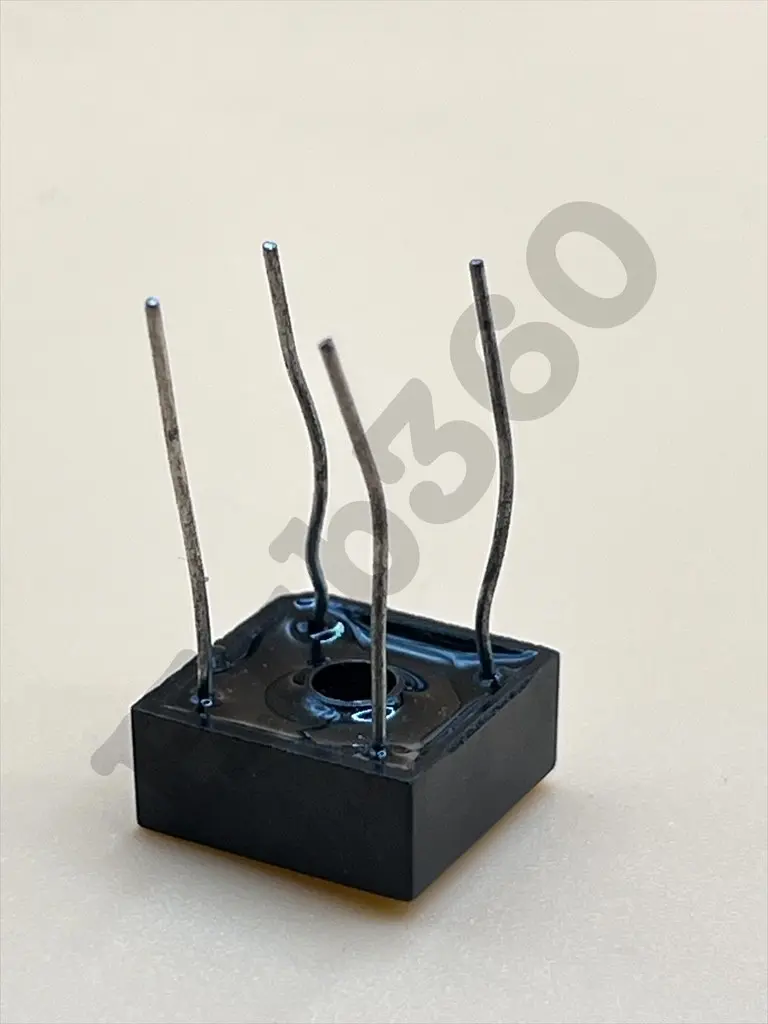

KBPC310 3A100V bridge rectifier
Description: The KBPC310 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various electronic circuits and power supply applications. It features a compact and efficient design suitable for low-power applications where space is limited. The bridge rectifier provides reliable rectification with low forward voltage drop and is housed in a durable package for enhanced thermal performance.
Key Features:
- Single-phase bridge rectifier
- Maximum Average Rectified Output Current (I_O): 3A
- Maximum Repetitive Peak Reverse Voltage (V_RRM): 100V
- Low forward voltage drop
- Compact and efficient design
- Reliable performance in low-power applications
- Maximum Average Rectified Output Current (I_O): 3A
- Peak Repetitive Reverse Voltage (V_RRM): 100V
- Maximum RMS Bridge Input Voltage (V_RMS): 70V
- Maximum DC Blocking Voltage (V_DC): 100V
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 3A, T_A = 25°C)
- Surge Overload Rating (I_Surge): 50A
- Operating Temperature Range: -55°C to +150°C
- Package Type: KBPC
- Power supplies
- Battery chargers
- LED drivers
- Consumer electronics
