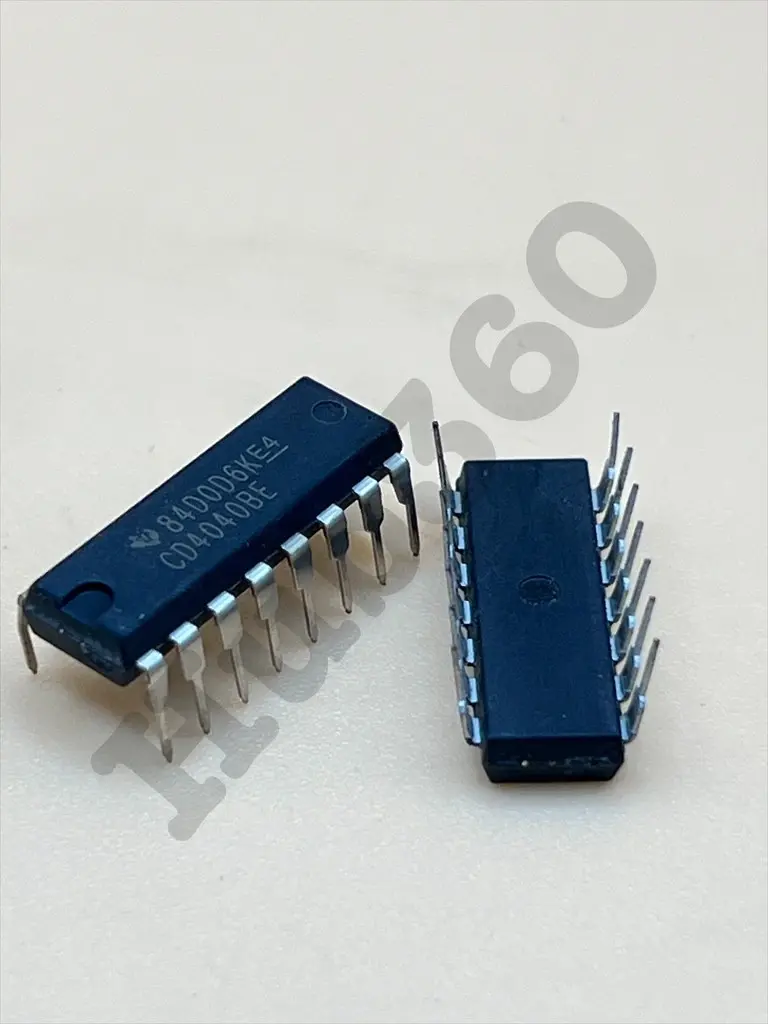

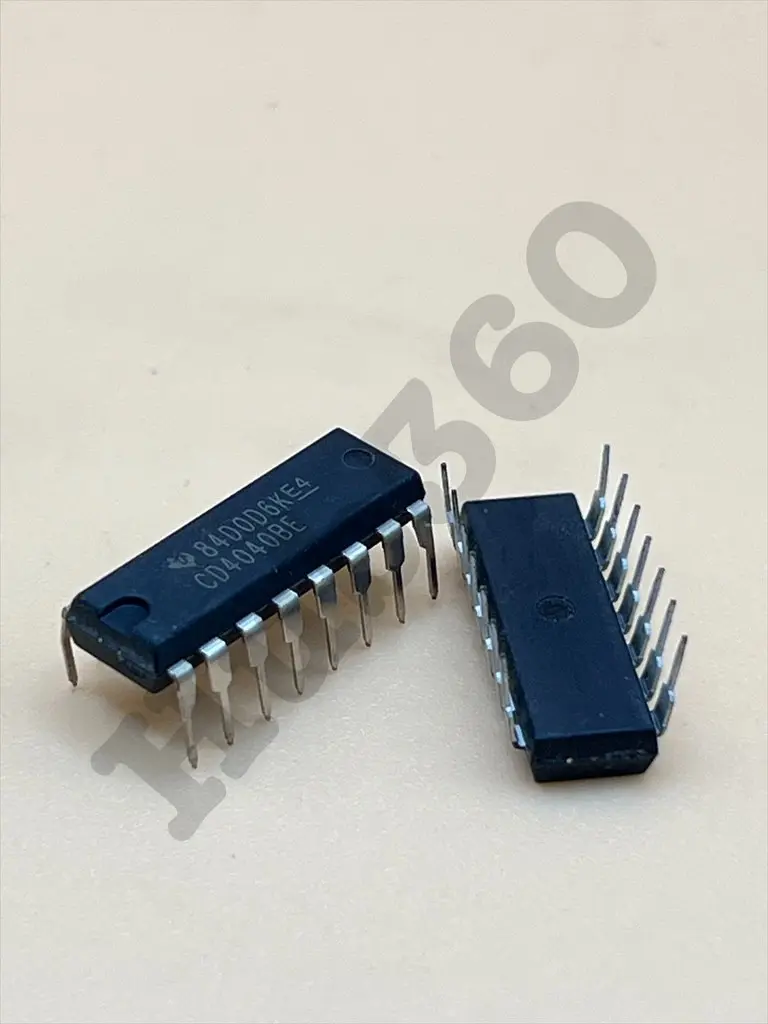

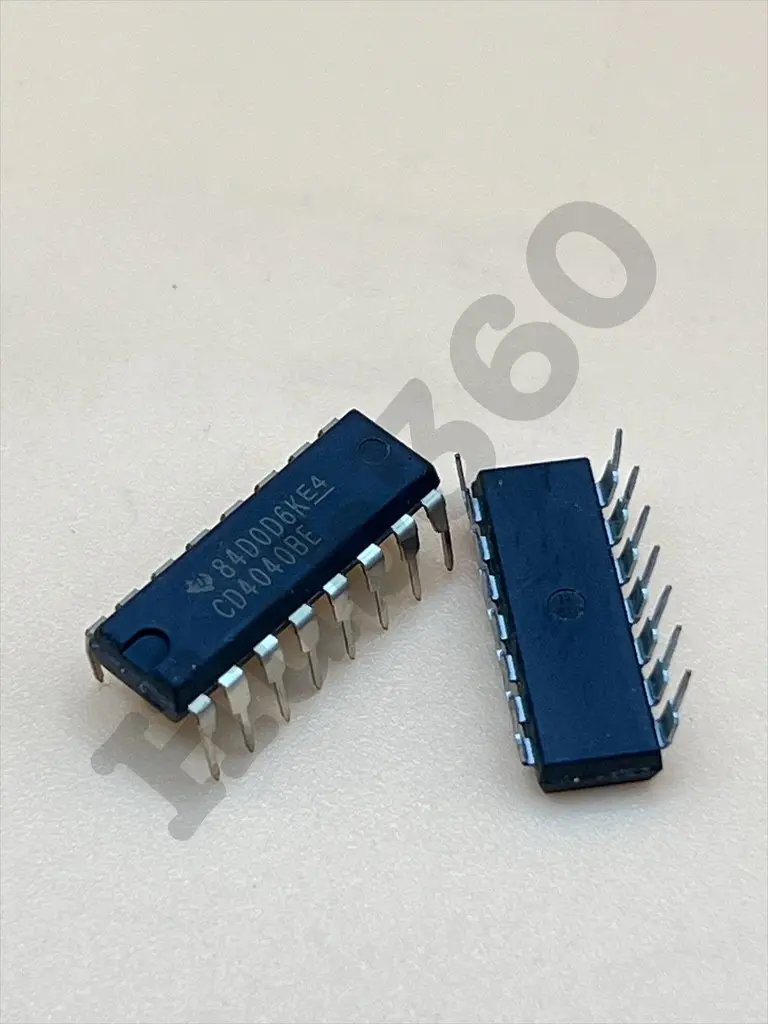

CD4040BE binary counter
The CD4040BE is a CMOS 12-stage binary counter/divider IC capable of counting up to 4096. It is commonly used in various applications where division of frequencies or timing sequences is required. The device features a reset input for clearing the counter to zero, making it versatile for use in digital circuits.
Key Features:
- 12-stage Binary Counter
- Wide Supply Voltage Range: 3V to 15V
- Reset Function (Clears Counter to Zero)
- High Speed Operation: 12 MHz (Typical)
- Low Power Consumption
- Supply Voltage Range: 3V to 15V
- Count Range: Up to 4096 (2^12)
- Operating Temperature Range: -55°C to 125°C
- Package Type: PDIP-16, SOIC-16
- Frequency Division and Counting
- Timing Circuits
- Digital Clocks
- Pulse Counting and Frequency Synthesis
