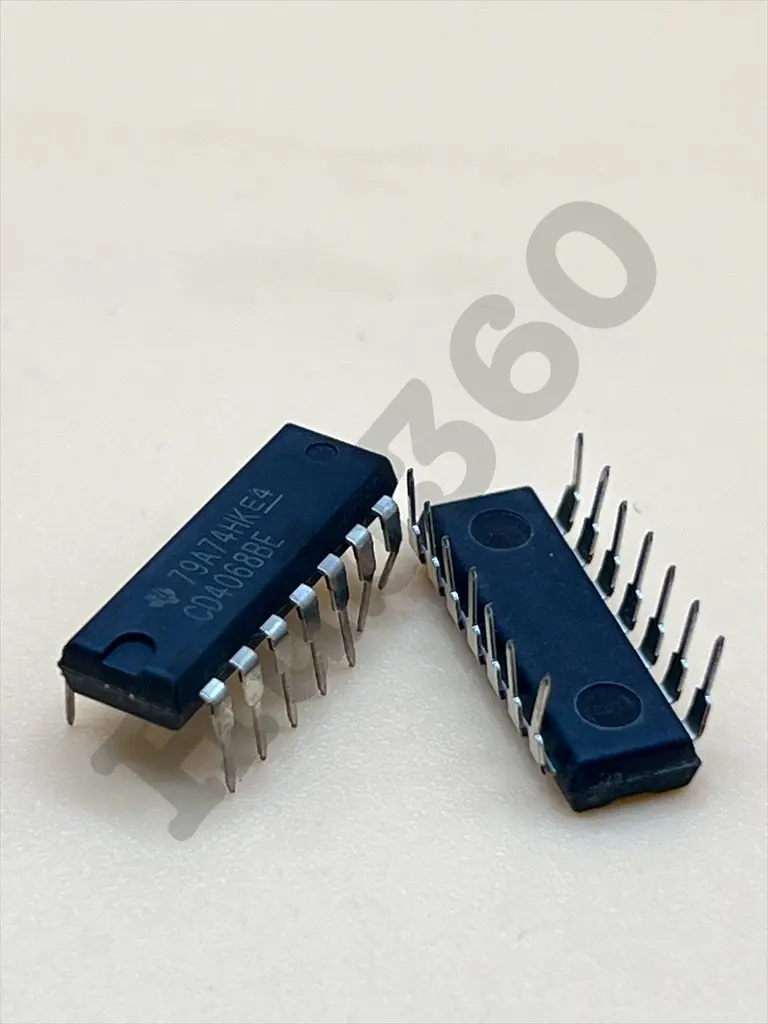

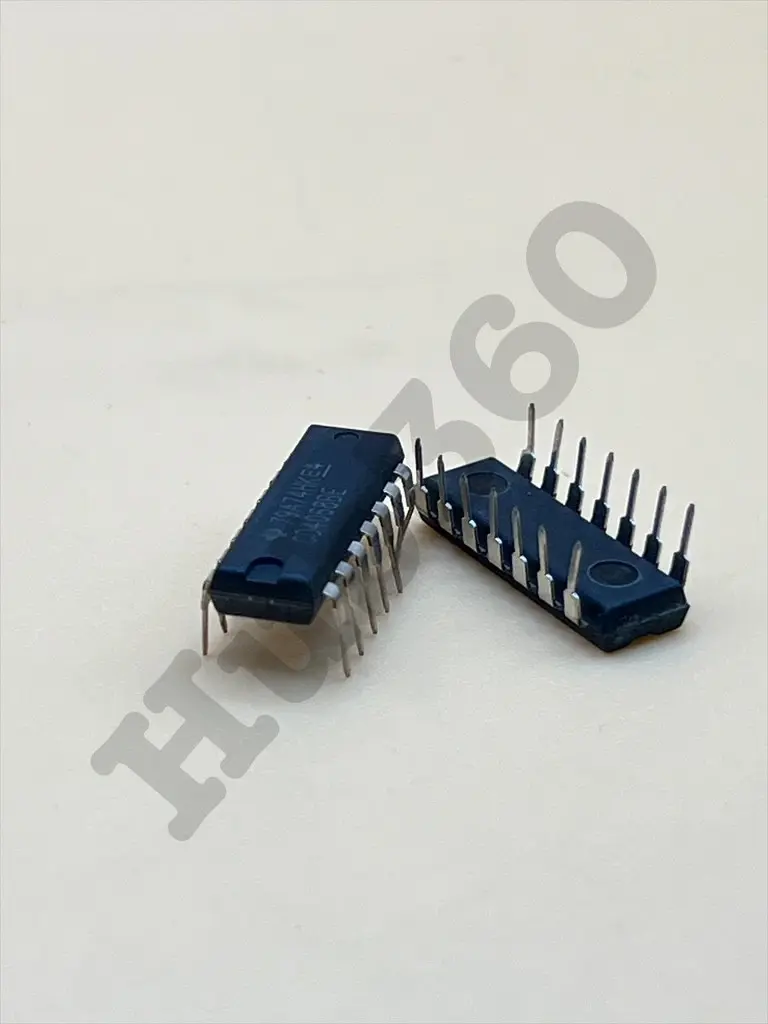

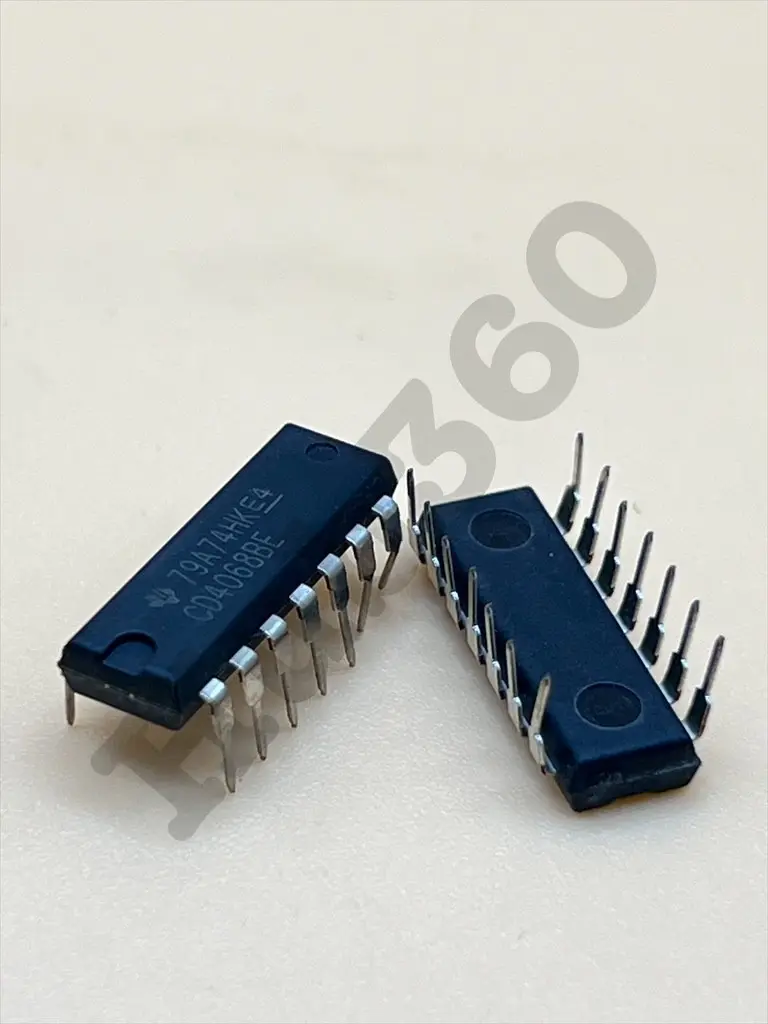

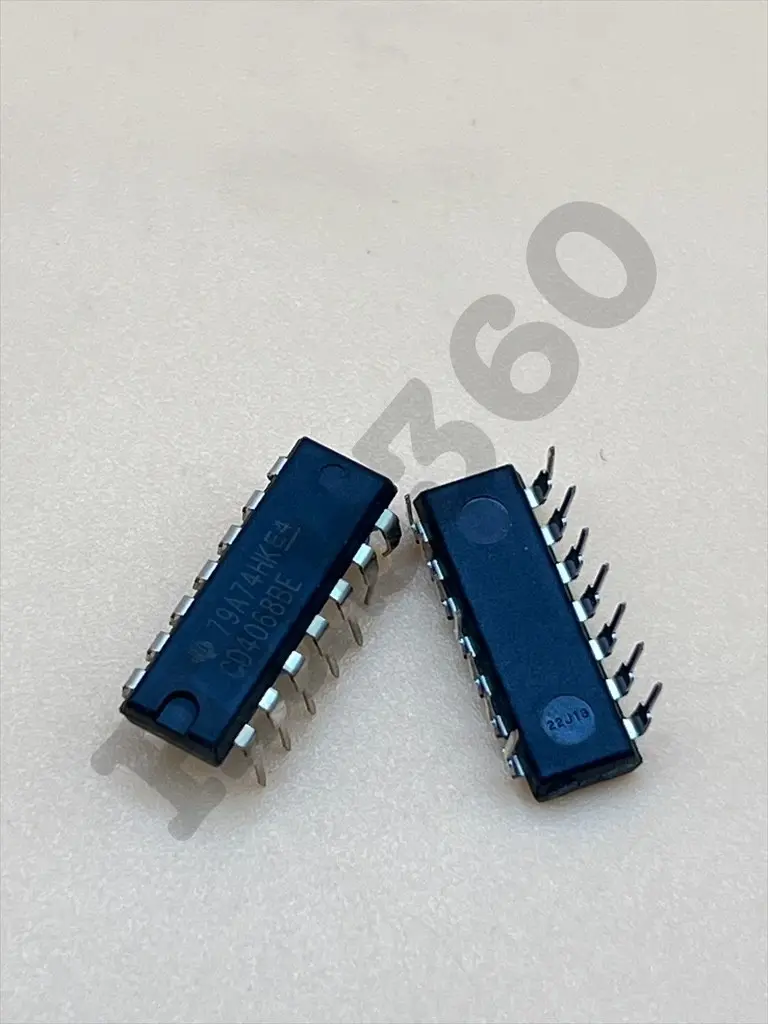

CD4068BE logic IC
The CD4068BE is a 4-input AND-OR-INVERT (AOI) gate from the CMOS 4000 series logic family. This versatile logic IC performs the AND function followed by the OR function and finally the INVERT function, all in a single package. It is suitable for a wide range of digital logic applications.
Key Features:
- 4-input AND-OR-INVERT gate
- CMOS technology for low power consumption
- High noise immunity
- Wide supply voltage range: typically operates from 3V to 15V
- Low input current: 1 µA (max) at 15V
- High output drive capability
- Logic Family: CMOS
- Number of Gates: 1
- Number of Inputs: 8 (4 for AND, 4 for OR)
- Supply Voltage Range: 3V to 15V
- Propagation Delay Time: 60 ns (typical) at V_DD = 10V
- Power Dissipation: 500 mW (max)
- Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Output Voltage (V_OH): V_DD - 0.05V min
- Digital logic applications
- Signal processing
- Data manipulation
- Combinational logic circuits
- Control systems
