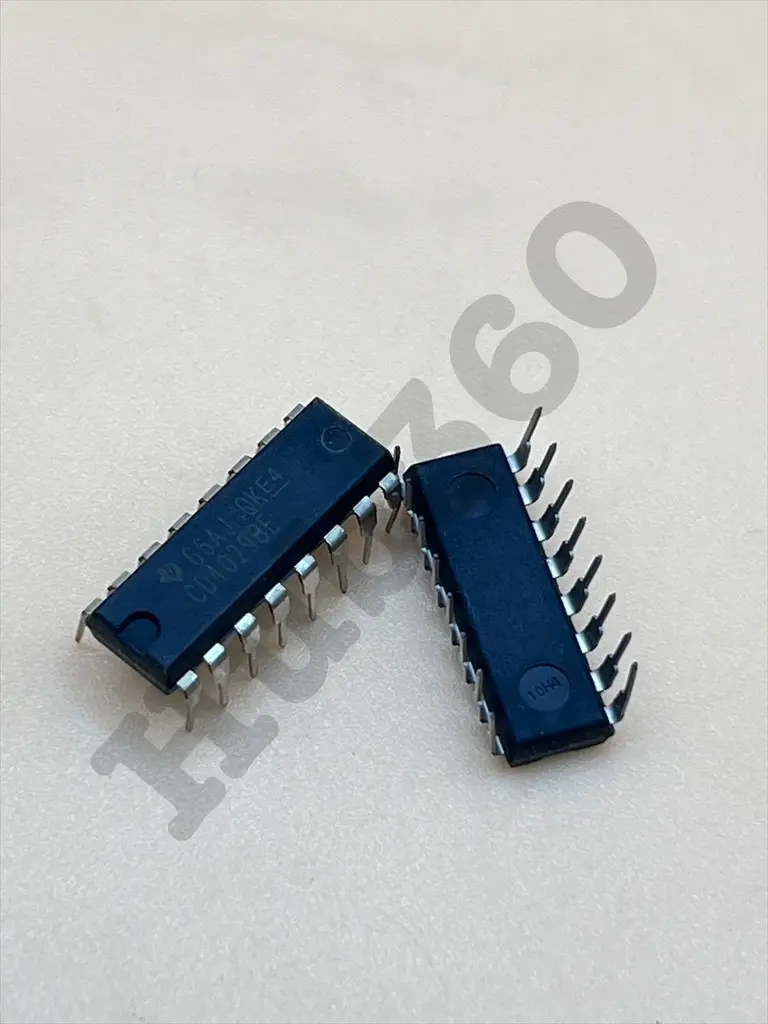

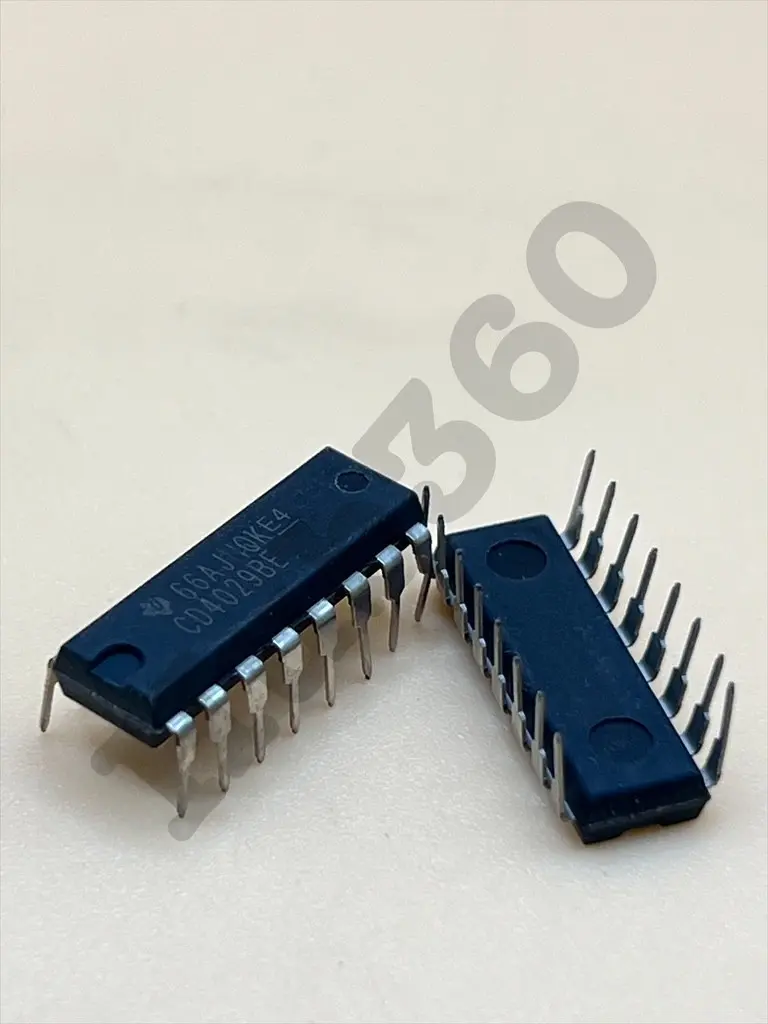

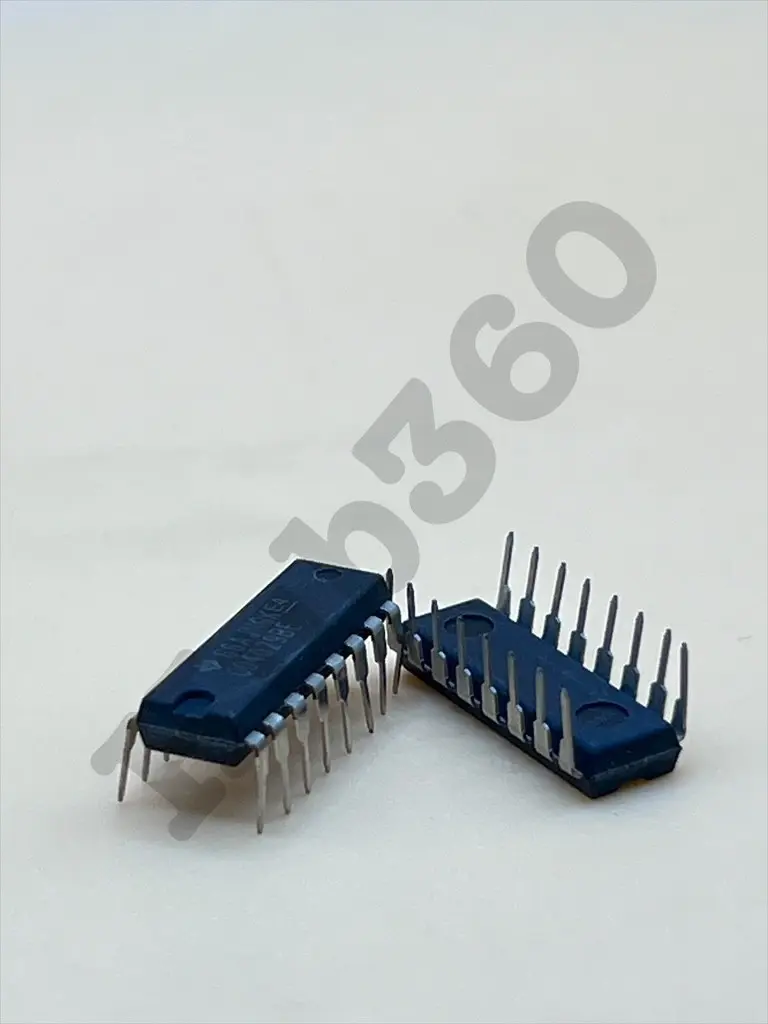

CD4029BE counter / divider
The CD4029BE is a versatile 4-bit synchronous binary/BCD up/down counter from the CMOS 4000 series logic family. It can operate as a binary or BCD counter, and features preset, up/down counting, and a master reset function, making it suitable for various counting and timing applications.
Key Features:
- 4-bit synchronous up/down counter
- Selectable binary or BCD counting
- Synchronous operation
- Presettable with asynchronous master reset
- Low power consumption with CMOS technology
- High noise immunity
- Wide supply voltage range
- Logic Family: CMOS
- Counting Modes: Binary or BCD
- Number of Bits: 4
- Supply Voltage Range: 3V to 15V
- Propagation Delay Time: 200 ns (typical) at V_DD = 10V
- Power Dissipation: 500 mW (max)
- Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Output Voltage (V_OH): V_DD - 0.05V min
- Digital counters
- Frequency dividers
- Digital clocks
- Event counting
- Timers
