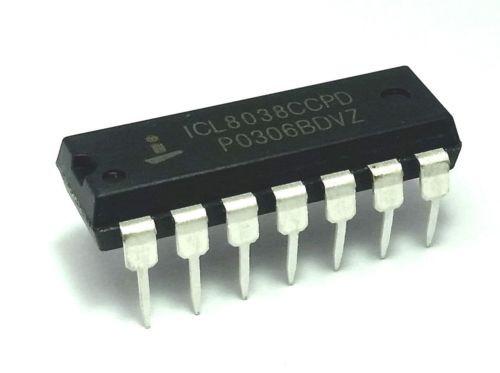

ICL8038CCPD waveform generator
Description:
The ICL8038CCPD is a precision waveform generator IC capable of producing high-accuracy sine, square, triangular, sawtooth, and pulse waveforms with minimal external components. It offers a high degree of flexibility with adjustable frequency, duty cycle, and amplitude, making it suitable for various applications in function generation and signal processing.
Key Features:
- Capable of generating sine, square, triangular, sawtooth, and pulse waveforms
- Wide frequency range: 0.001 Hz to 300 kHz
- Low distortion sine wave: less than 1% THD
- Adjustable duty cycle
- Frequency adjustable via external resistors and capacitors
- High frequency stability
- Low total harmonic distortion
- Linear triangle wave generation
- Single or dual supply operation: ±5V to ±15V
- Package Type: PDIP-14
- Supply Voltage Range: ±5V to ±15V
- Frequency Range: 0.001 Hz to 300 kHz
- Output Amplitude: Adjustable
- Sine Wave Distortion: <1% THD
- Operating Temperature Range: 0°C to +70°C
- Dimensions: 19.3 mm x 6.35 mm x 4.57 mm
- Weight: 1.02 g
- Function Generators: Used in electronic test equipment for generating various waveforms.
- Audio Signal Generation: Produces audio frequency signals for testing and audio equipment.
- Signal Processing: Used in signal processing circuits for waveform generation and modulation.
- Communication Systems: Generates test signals for communication equipment and systems.
- Educational and Training Kits: Ideal for teaching and learning about waveform generation and signal theory.
