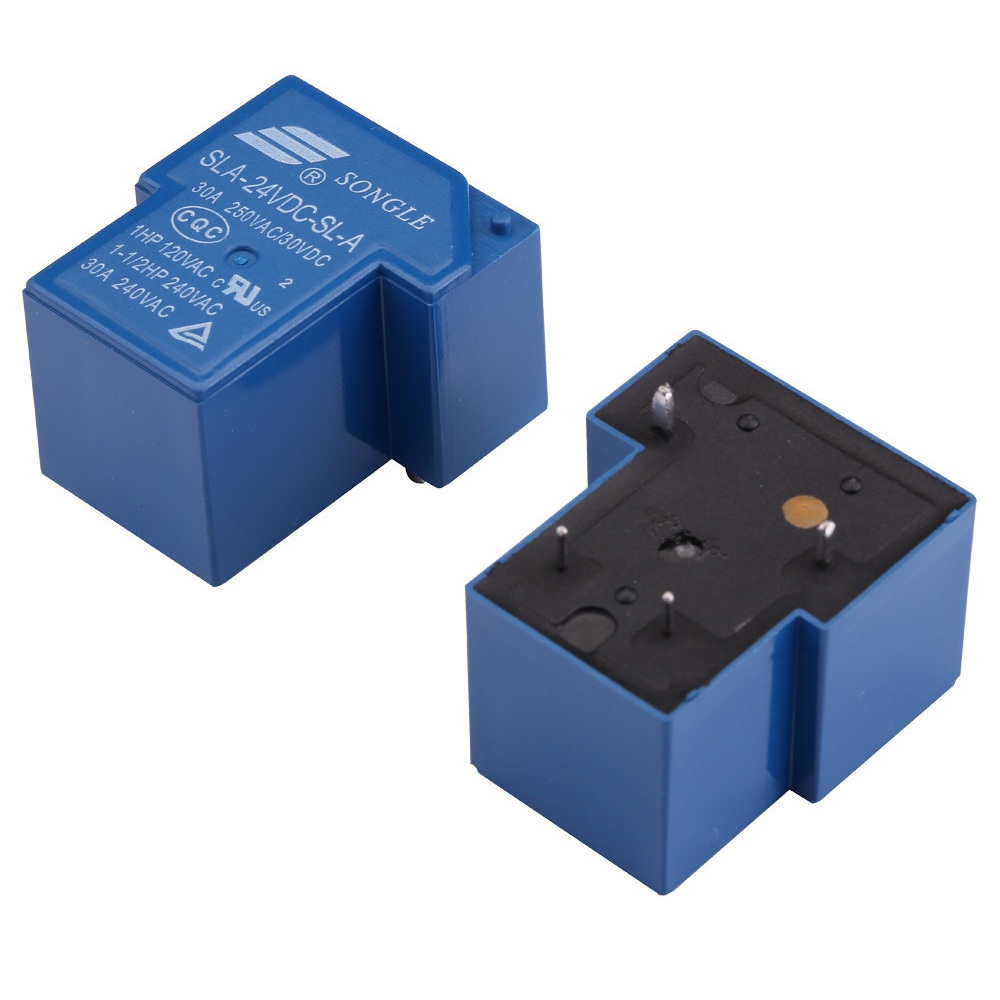

SLA-24VDC-SL-A 4 pin 24v relay
Description:
The SLA-24VDC-SL-A is a general-purpose electromagnetic relay designed for switching high-current loads in various electronic and electrical control applications. It features a compact design with 4 pins for easy integration into circuit boards and control systems. The SLA-24VDC-SL-A relay operates at a coil voltage of 24V DC and is capable of switching AC or DC loads up to a specified current and voltage rating, making it suitable for a wide range of industrial, automotive, and consumer electronics applications.
Key Features:
- Electromagnetic relay with SPST (Single Pole Single Throw) normally open contacts
- Compact and lightweight design
- Coil Voltage: 24V DC
- Contact Rating: Up to 10A @ 250V AC or 30V DC (depending on model)
- High insulation resistance and dielectric strength
- Low power consumption
- Mechanical and electrical life expectancy suitable for long-term use
- RoHS compliant and lead-free soldering capability
- Contact Configuration: SPST-NO (Single Pole Single Throw Normally Open)
- Contact Material: Silver alloy
- Coil Power Consumption: Typical 400mW
- Maximum Switching Voltage: 250V AC / 30V DC
- Maximum Switching Current: 10A
- Operate Time: ≤ 10ms
- Release Time: ≤ 5ms
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Compact 4-pin through-hole package
- Industrial Automation
- Home Appliances
- Automotive Electronics
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Power Supplies
- Lighting Controls
