PAM8610 Class D Digital Power Amplifier

Price:

₦ 3,000.00
PAM8610 Class D Digital Power Amplifier
  2. Shop
  3. PAM8610 Class D Digital Power Amplifier
Royal Rechargeable Mist Fan (RRMF-1172)
Royal Rechargeable Mist Fan (RRMF-1172)
₦ 158,000.00
₦ 158,000.00
DIY STEM Speedboat
DIY STEM Speedboat
₦ 9,200.00
₦ 9,200.00

PAM8610 Class D Digital Power Amplifier

https://maxmall.ng/web/image/product.template/16803/image_1920?unique=9b5eb2b
(0 review)

₦ 3,000.00 3000.0 NGN ₦ 3,000.00

₦ 3,000.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.


Contact Us
The PAM8610 Class D Digital Power Amplifier is a compact, highly efficient stereo audio amplifier capable of delivering up to 2×15W output power into 8Ω speakers. Key Features
  • Class D Amplification: High-efficiency, low heat output design
  • Stereo Output: Delivers 10W per channel at 8Ω (with 12V supply)
  • Compact PCB Module: Easy integration into small or portable devices
  • Wide Supply Voltage: Operates from 7V to 15V DC
  • Low EMI and THD: Clear, distortion-free audio output
  • No Heatsink Required: Efficient design eliminates the need for bulky cooling
  • High-quality sound reproduction:The amplifier delivers clear and top-quality sound, resulting in an enhanced listening experience.
  • Energy efficient:With an efficiency of over 90%, the module consumes less power, beneficial for both the device’s lifespan and energy consumption.
  • Extended volume control:The 32-step DC volume control allows the user to adjust the sound volume as desired, providing a personalized listening experience.
Technical Specifications
  • Working Mode: Class D (PWM)
  • Channel Type:Dual Channel stereo
  • Output Power: 2×15W @ 8Ω, 13V
  • Operating Voltage: 7V – 15V DC
  • Max Wattage:15W
  • Volume Control Range: +32dB to -75dB
  • Volume control resolution:32 Steps
  • Efficiency: Over 90%
  • Speaker Impedance: 4Ω – 8Ω recommended**
  • THD+N: 0.1%
  • Input Type: Analog audio

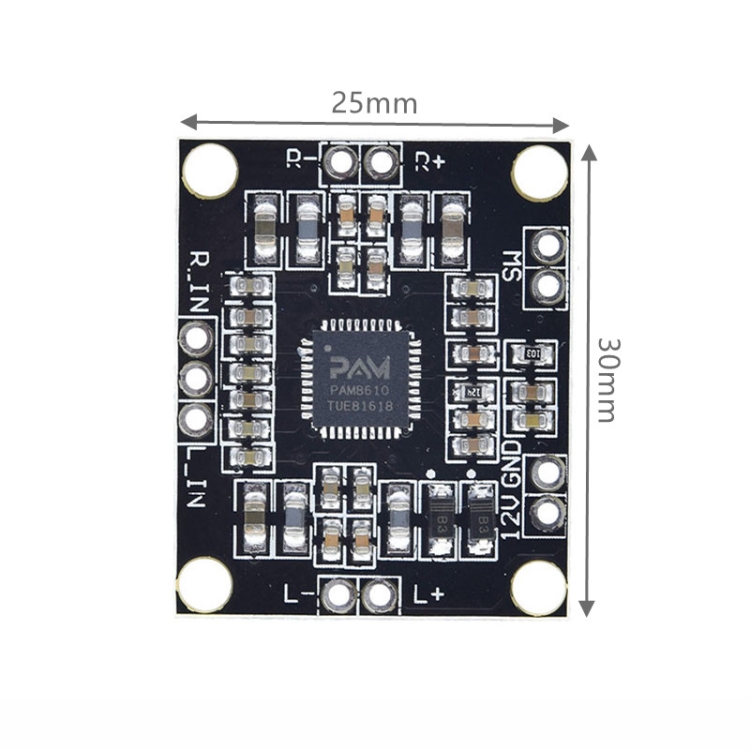

  • Board Dimensions: Approx. 30mm × 25mm
  • Weight: 11g
Applications
  • DIY portable speaker systems
  • Battery-powered audio devices
  • Bluetooth speaker projects
  • Embedded sound output for IoT or robotics
  • Speaker output in TV Projectors and computers.
Why Choose This Product? The PAM8610 Audio Amplifier is compact and offers great performance and efficiency. Its Class D architecture ensures cool operation and long battery life, perfect for high-quality sound systems. It delivers a solid sound without the need for complex power or cooling setups.
