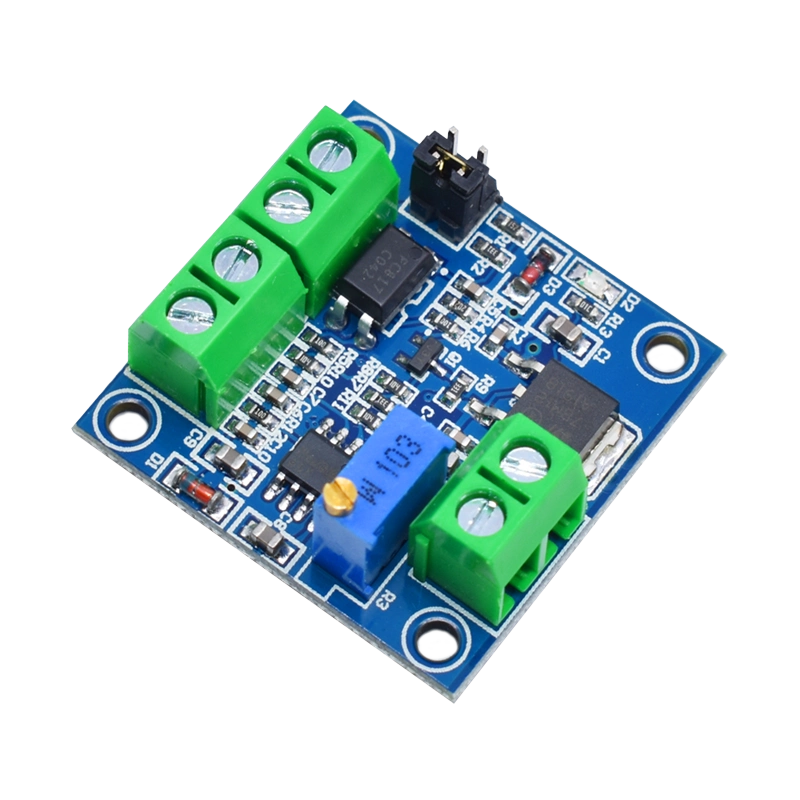

Voltage to PWM module

https://maxmall.ng/web/image/product.template/16829/image_1920?unique=9b5eb2b
(0 review)

₦ 3,600.00 3600.0 NGN ₦ 3,600.00

₦ 3,600.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.


Contact Us
The Voltage to PWM module is a compact and efficient module designed to convert analog voltage signals (0–5V or 0–10V) into a PWM signal with a 0–100% duty cycle.

Features:

  • Utilizes embedded single-chip microcontroller technology for stable performance
  • Easy to operate, with fine-tuning available via an onboard potentiometer
  • Supports selectable input voltage ranges (0–5V / 0–10V)via jumper cap for flexibility
  • Compact and lightweight design, making it easy to carry and integrate into various applications

Specifications:

  • Operating Voltage:DC 7V – 12V
  • Conversion Range:0–5V / 0–10V input voltage to 0%–100% PWM output
  • Output PWM Amplitude:5V (constant)
  • PWM Frequency:~50 kHz (standard)
  • Accuracy (Allowable Error):1% – 3%
  • Module Dimensions:32mm × 34mm
 Applications:
  • The module is used to control motors or other areas where PWM is required.
