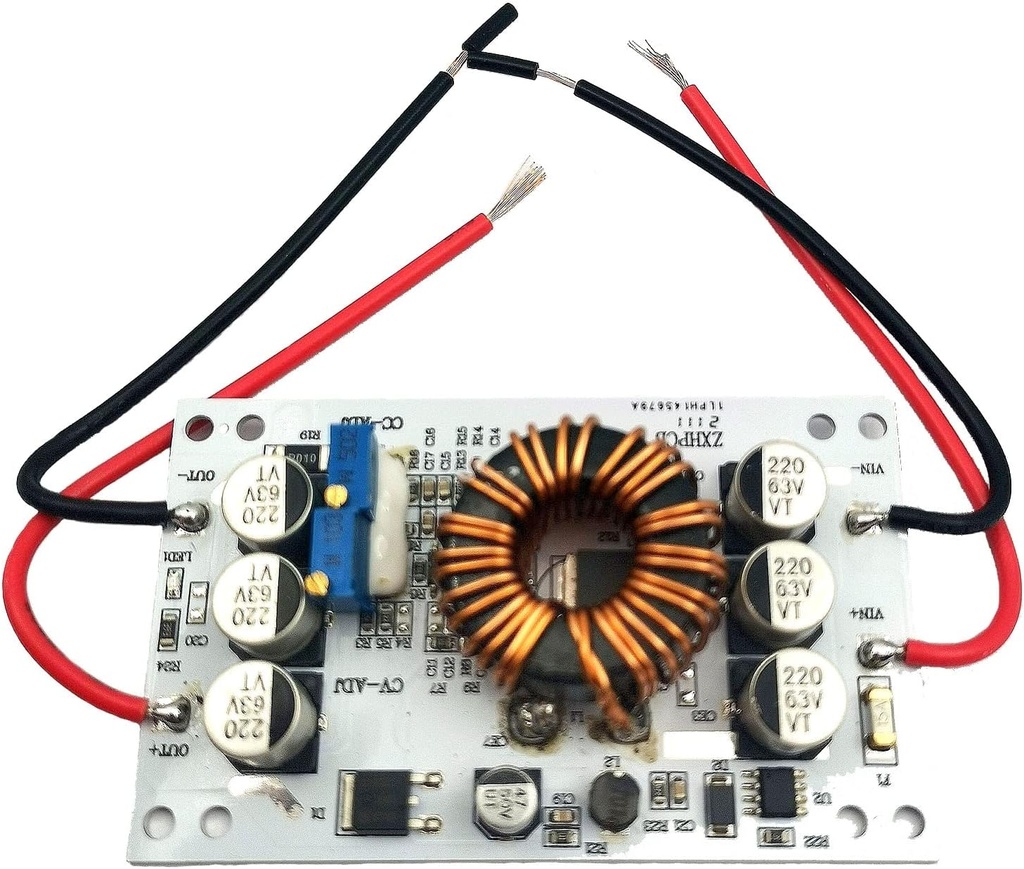

600W DC-DC Boost Converter Module – High Power Constant Current Step-Up Module

The 600W DC-DC Boost Converter is a non-isolated, high-efficiency step-up module with adjustable voltage and current, specifically designed for high-power DC applications such as battery charging, LED driving, and DIY electronics. With its constant current capability and broad input/output range, this module ensures stable performance in a wide range of demanding environments.

Features

• High power output: Up to 600W

• Wide input voltage range: 10V to 60V DC

• Adjustable output voltage: 12V to 60V DC

• Constant current functionality for LED lighting and battery charging

• Up to 96% efficiency with good thermal management

• Precise voltage and current tuning via onboard potentiometers

• Four mounting holes for easy integration

Specifications

• Module Name: 600W Constant Current Boost Converter

• Type: Non-isolated Step-Up (BOOST)

• Input Voltage: DC 10V – 60V

• Input Current: Max 10A

• Quiescent Current: ~10mA (increases with output voltage)

• Output Voltage: 12V – 60V (Adjustable, default 19V)

• Output Current: Max 10A (Heat dissipation required above 6A)

• Constant Current Range: 0.2A – 10A

• Power Output: Input Voltage × 10A (e.g. 24V × 10A = 240W)

• Operating Temperature: -40°C to +85°C (Add cooling at high temps)

• Switching Frequency: 150KHz

• Conversion Efficiency: 92% – 96% (depends on voltage/current/load)

• Reverse Input Protection: None (Do not reverse polarity)

• Installation: 4 × 3mm screw holes

• Wiring Method: Terminal connection

• Size: 85mm × 52mm × 21mm

• Weight: 80g

Applications

• High-power LED lighting systems

• Battery charging (Li-ion, LiFePO4, lead-acid, etc.)

• Solar-powered projects and energy storage

• Adjustable high-power DC power supplies

• Electric vehicle electronics and DIY robotics

• RC power systems and drone charging modules
