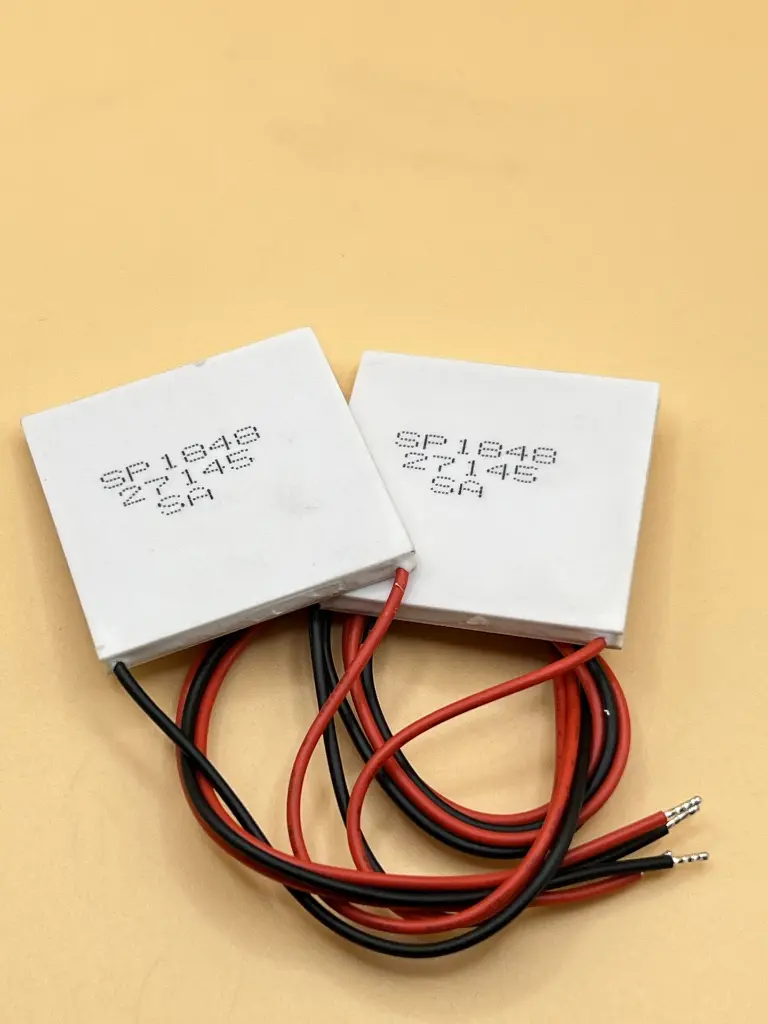

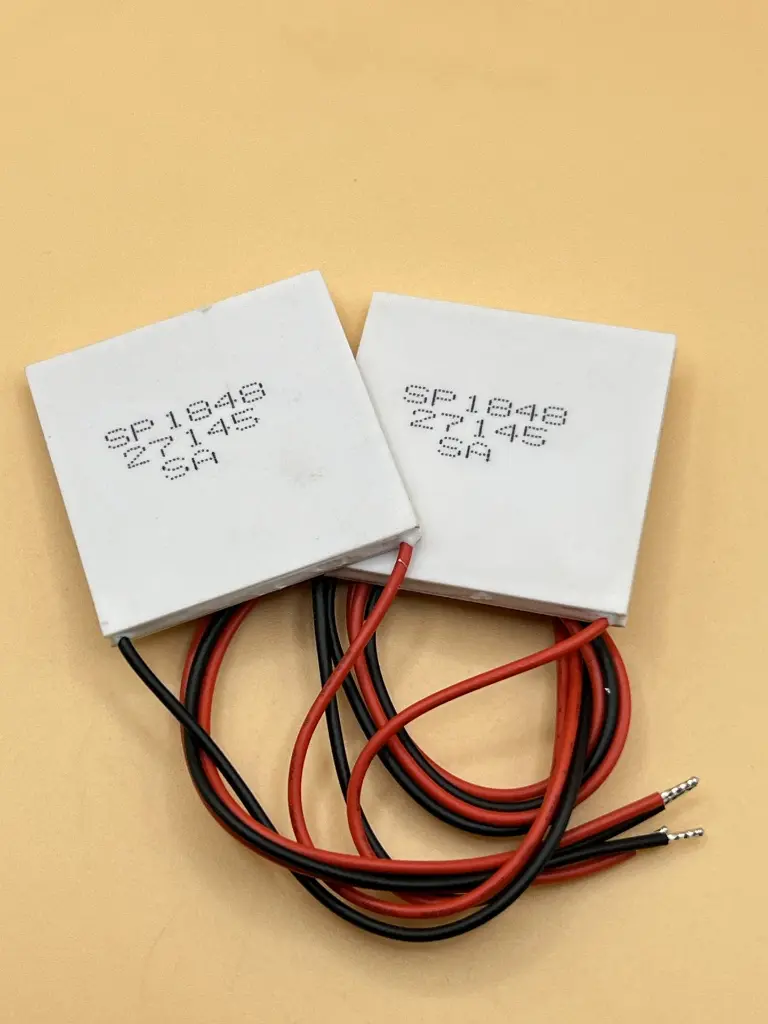

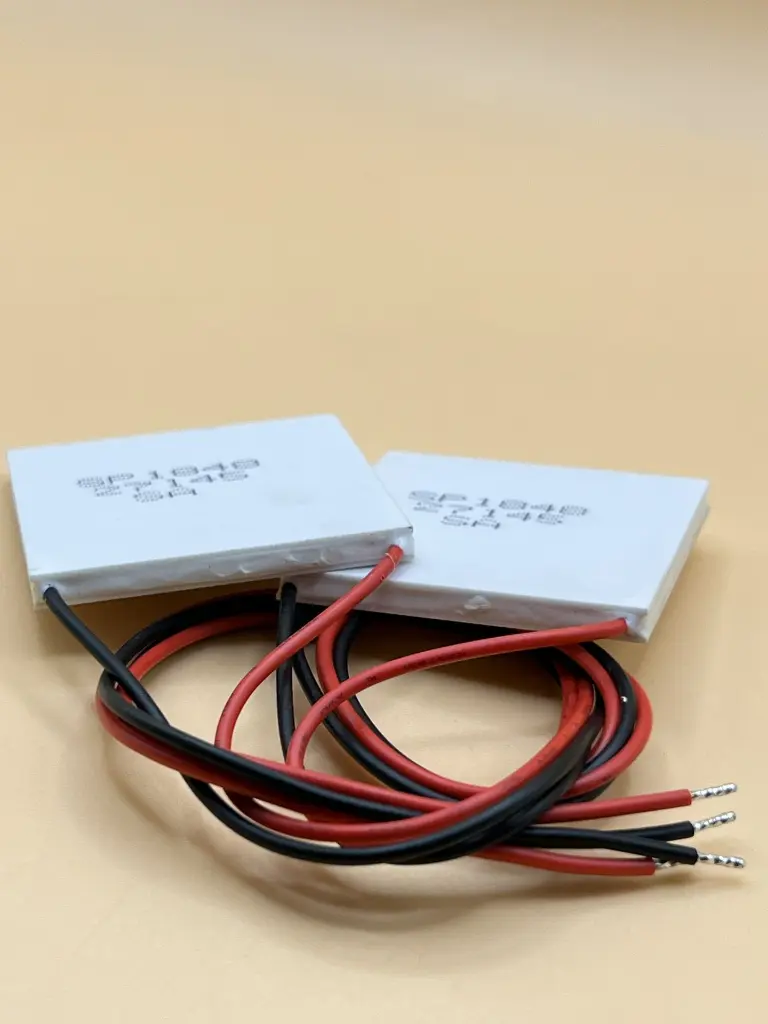

The SP1848-27145 Thermoelectric Generator Module is a high-efficiency power generation device based on the Seebeck effect. Designed to convert heat into electricity, this compact module provides a reliable source of DC voltage in temperature differentials.

Key Features:

  • Heat-to-Electricity Conversion – Generates DC voltage from temperature differences

  • High Operating Temperature – Up to 120°C for maximum thermal efficiency

  • Ready to Use – Includes long 350mm leads for easy integration

  • Sealed Design – Moisture-resistant and environmentally durable

  • Compatible with Booster Boards – Easily scales up voltage for 5V USB output

  • Lightweight & Compact – Only 30g, ideal for portable and embedded systems

Technical Specifications:

  • Model: SP1848-27145

  • Open Circuit Voltage: 4.8V

  • Operating Temperature Range: 0°C to 120°C

  • Maximum Temperature: 120°C

  • Module Dimensions: 40mm x 40mm x 3.6mm

  • Weight: 30g

  • Wire Length: 350mm

  • Application Type: Power generation only (not cooling)

  • Protection: Moisture-sealed with NM static protection

Applications:

  • Off-grid power generation

  • Waste heat recovery

  • Emergency phone charging (with booster board)

  • Educational experiments

  • Eco-friendly energy harvesting

  • DIY thermoelectric projects
