Description

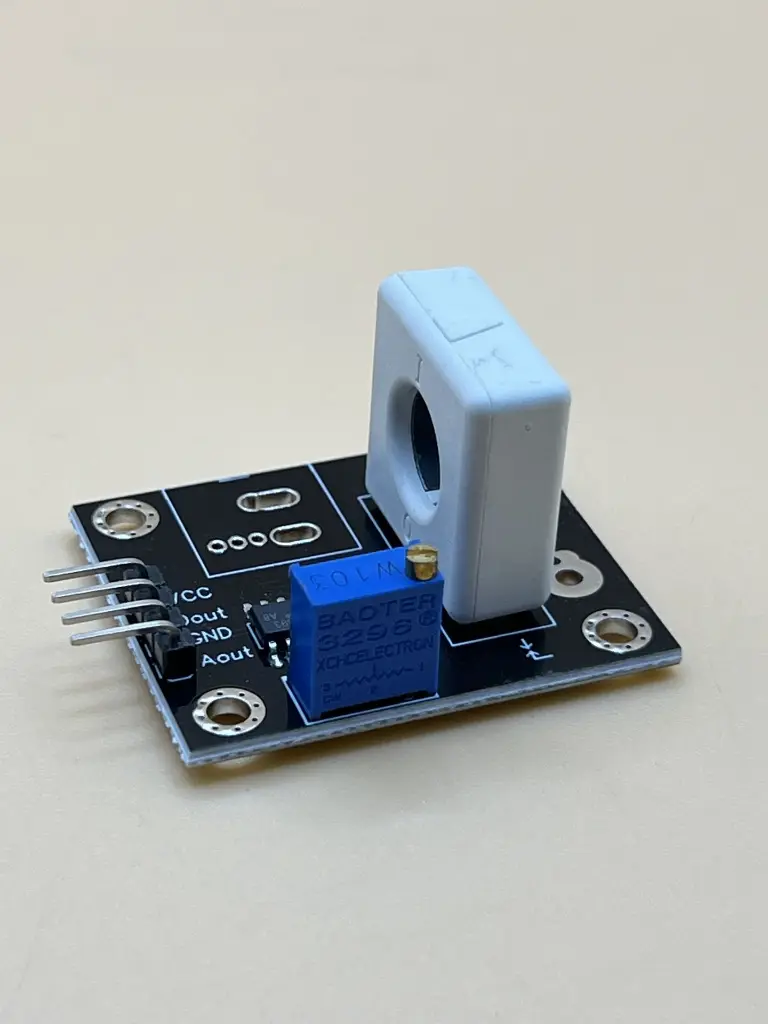

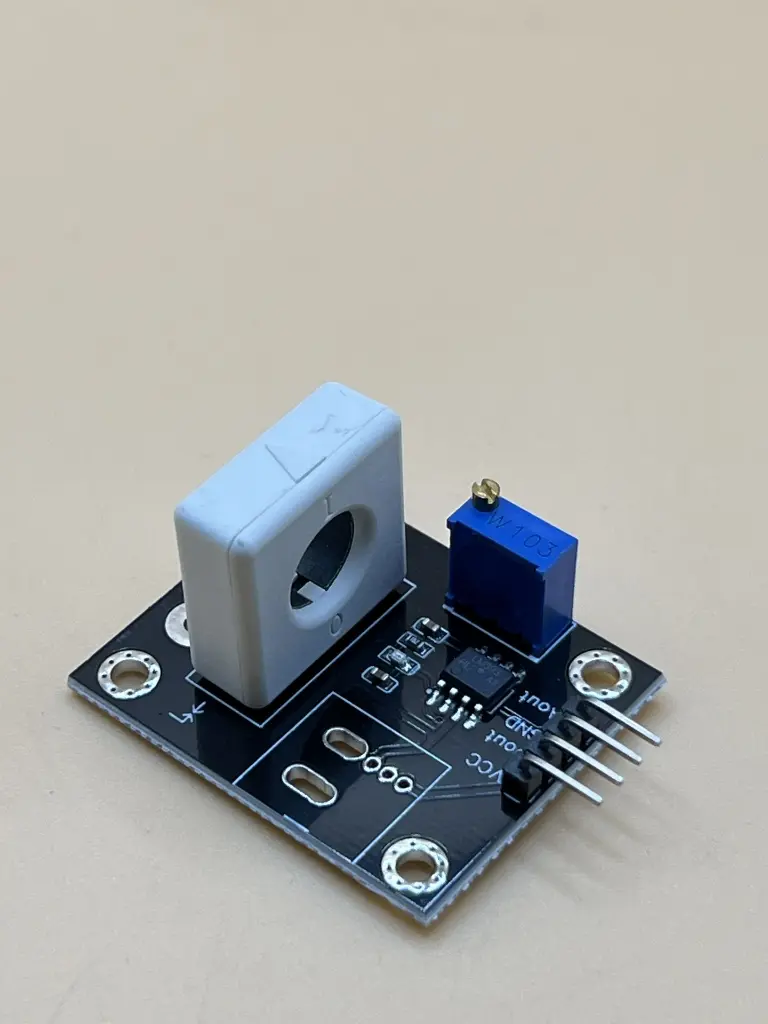

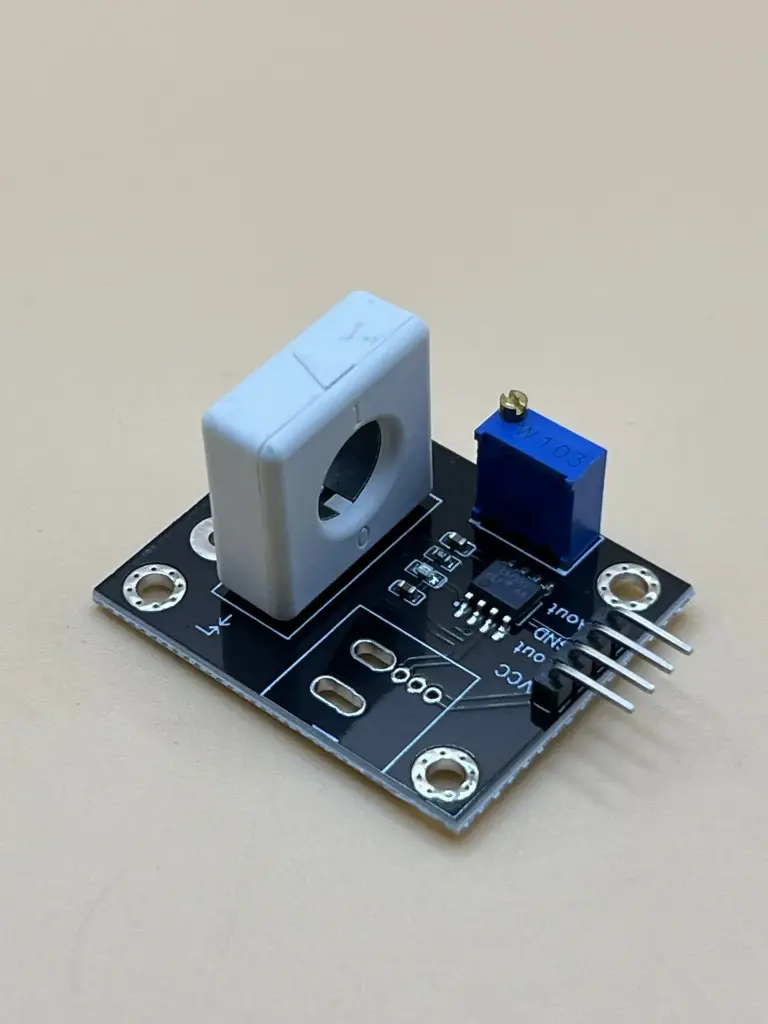

The WCS1800 is a high-precision Hall-effect current sensor designed for detecting both AC and DC currents up to 35A. It offers dual output modes, an analog voltage signal for real-time continuous monitoring and a digital switch output that triggers when a preset current threshold is crossed. This makes it ideal for intelligent control systems, overcurrent protection, and energy-efficient designs.
Key Features
- Dual output: analog voltage for continuous monitoring, digital switch for overcurrent alerts
- Built-in operational amplifier delivers clean analog signal, perfect for MCU A/D input
- Adjustable threshold for digital output; onboard LED indicator lights up during overcurrent
- Supports both DC and AC current sensing
- Compact PCB with easy interfacing for embedded applications
Specification
- Operating Voltage: 5V DC
- Measurement Range:
- DC: 0 – 35A
- AC: 0 – 25A
- Switching Output Threshold: Adjustable between 0.5A – 35A
- Output Types:
- Analog voltage output
- Digital switch output (with indicator LED)
- Board Dimensions: 37mm × 31mm
Application
- Overcurrent protection in power distribution systems
- Battery Management Systems (BMS)
- Load monitoring in smart energy meters
- Motor current sensing in automation and robotics
- Embedded systems (Arduino, ESP32, STM32) for current data logging and control
